LAPP 63104360 63104360 L-RC 6 LAPP RING CABLE LUGS L-RC 6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

63104360 L-RC 6 LAPP RING CABLE LUGS L-RC 6

63104360

63104360

L-RC 6

LAPP

50 Pcs.

RING CABLE LUGS L-RC 6 Insulated cable lugs

Automation > Solderless copper terminals for copper conductors
Connection engineering

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lapp part number 63104360 is an insulated ring cable lug utilized for establishing permanent, low-resistance connections in electrical control systems. Ring terminals provide full contact security, ensuring that high-vibration industrial environments do not compromise circuit integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • PA: -20°C up to +105°C PC: -20°C up to +100°C
  • ETIM 5.0 Class-ID: EC001052
  • ETIM 5.0 Class-Description: Solderless copper terminals for copper conductors
  • ETIM 6.0 Class-ID: EC001052
  • ETIM 6.0 Class-Description: Solderless copper terminals for copper conductors

More info

▲

Insulated cable lugs Easy-Entry (ring cable lugs, (narrow) fork cable lugs, flange fork cable lugs, pin cable lugs, circular connector, connector sleeve butt connector, end joint)

Benefits

  • EASY-ENTRY funnel shape of the plastic sleeve enables simple, fast and safe insertion of the conductor
  • No risk of bent and crushed cables
  • For good strength and improved current conduction

Application range

  • Manufacturing of control cabinets and equipment

Product features

  • Hard-soldered cable lug that can be pressed in any position
  • For first-class connection with simple operating principle
  • Electrolytic tinning for max. corrosion protection
  • Flat receptacle material in contact pressing is double-folded and hard-soldered
  • Metal sleeves with internal corrugation

Norm references / Approvals

  • File Number E334109, see table

Note

  • Butt connector: Solid conductors and fine stranded wires and diverse cross-sections can be crimped together

Design

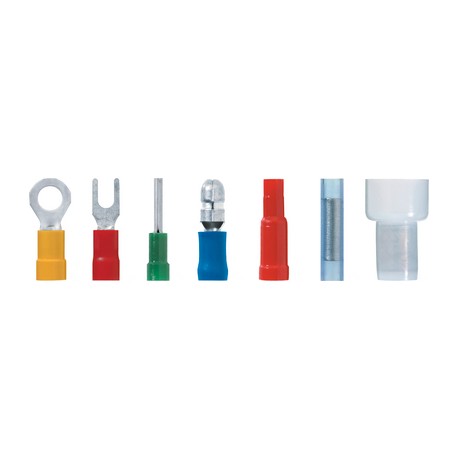

  • 1 = ring cable lugs2 = forked cable lugs3 = pin cable lugs4 = circular connector5 = connector sleeve6 = butt connector7 = end connector(see pictures- from left to right)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001052
  • ETIM 5.0 Class-Description: Solderless copper terminals for copper conductors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001052
  • ETIM 6.0 Class-Description: Solderless copper terminals for copper conductors

General

  • Other sizes and colours (also DIN) are available upon request
  • Halogen-free

Material

  • High-quality electrolytic copper for good conductivity
  • PA (UL 94 V0)
    PC (UL 94 V2)
    see datasheet

Temperature range

  • PA: -20°C up to +105°C
    PC: -20°C up to +100°C
