View larger
Images are for illustrative purposes only. Please refer to data sheet for details
63104340 L-RC 4 LAPP RING CABLE LUGS L-RC 4
63104340
63104340
L-RC 4
LAPP
50 Pcs.
RING CABLE LUGS L-RC 4
Insulated cable lugs
Automation > Solderless copper terminals for copper conductors
Connection engineering
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Insulated cable lugs Easy-Entry (ring cable lugs, (narrow) fork cable lugs, flange fork cable lugs, pin cable lugs, circular connector, connector sleeve butt connector, end joint)
Benefits
- EASY-ENTRY funnel shape of the plastic sleeve enables simple, fast and safe insertion of the conductor
- No risk of bent and crushed cables
- For good strength and improved current conduction
Application range
- Manufacturing of control cabinets and equipment
Product features
- Hard-soldered cable lug that can be pressed in any position
- For first-class connection with simple operating principle
- Electrolytic tinning for max. corrosion protection
- Flat receptacle material in contact pressing is double-folded and hard-soldered
- Metal sleeves with internal corrugation
Norm references / Approvals
- File Number E334109, see table
Note
- Butt connector: Solid conductors and fine stranded wires and diverse cross-sections can be crimped together
Design

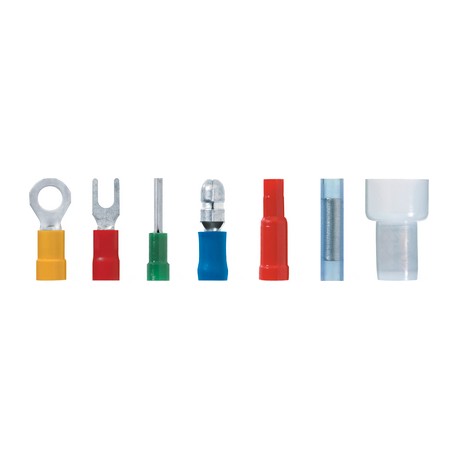

- 1 = ring cable lugs2 = forked cable lugs3 = pin cable lugs4 = circular connector5 = connector sleeve6 = butt connector7 = end connector(see pictures- from left to right)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001052
- ETIM 5.0 Class-Description: Solderless copper terminals for copper conductors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001052
- ETIM 6.0 Class-Description: Solderless copper terminals for copper conductors
General
- Other sizes and colours (also DIN) are available upon request
- Halogen-free
Material
- High-quality electrolytic copper for good conductivity
- PA (UL 94 V0)
PC (UL 94 V2)
see datasheet
Temperature range
- PA: -20°C up to +105°C
PC: -20°C up to +100°C
