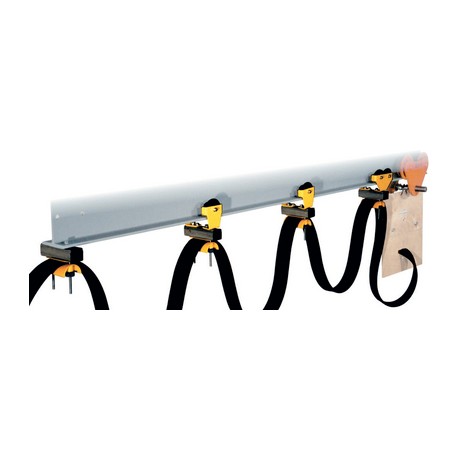

LAPP 62200490 62200490 End clamp flat I-Beam LAPP End clamp flat I-Beam View larger
Images are for illustrative purposes only. Please refer to data sheet for details

62200490 End clamp flat I-Beam LAPP End clamp flat I-Beam

62200490

62200490

End clamp flat I-Beam

LAPP

1 Pcs.

End clamp flat I-Beam T-beam energy trolley system

Cables > Accessories/spare parts for cable carrying system
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 62200490 end clamp flat I-beam secures the termination point of flat cable runs mounted to structural T-beams and I-beams. Beam end clamps lock terminal lines securely in place to maintain proper system tension. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max load capacity: 20 kg
  • Metal parts: galvanized steel Tweezers: polyamide 6
  • ETIM 5.0 Class-ID: EC002935
  • ETIM 5.0 Class-Description: Energy Carrier Accessory

More info

▲

Lapp Group offers a cable conveying system for both flat and round cables.

Space-saving fixation, since there is no lateral displacement with respect to the beam

proceeds

  • Careful cable ties prevent severe cable bending

Scope of use

  • Crane and transport machinery
  • For elevators and transport facilities
  • Machine building
  • Not suitable for applications in explosive environments

Notice

  • Round- and flat cables are not allowed to be combined side by side or below each other
  • Do not mount more than three round cable clamps one underneath the other
  • Radius of curvature on the bracket corresponds to the value of a fixed installation

Product composition

  • The installation of a system depends on various criteria, for example: maximum cable drop (weight of the cable) and working duration.

ETS Classification 5

  • ETIM 5.0 Class-ID: EC002935
  • ETIM 5.0 Class-Description: Energy Carrier Accessory

General

  • Max load capacity: 20 kg

Material

  • Metal parts: galvanized steel Tweezers: polyamide 6

Temperature range

  • from -40 °C to +120 °C
