View larger
Images are for illustrative purposes only. Please refer to data sheet for details
62200486 End clamp flat C40 22x132 LAPP End clamp flat C40 22x132
62200486
62200486
End clamp flat C40 22x132
LAPP
1 Pcs.
End clamp flat C40 22x132

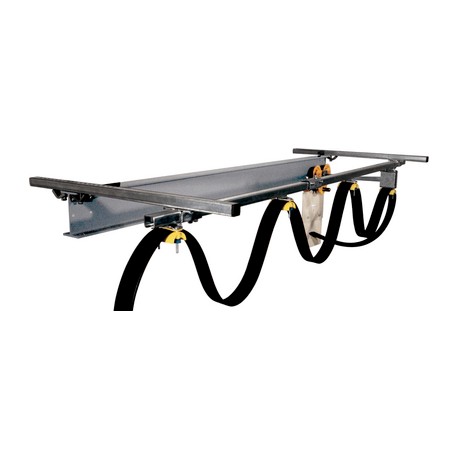

Energy trolley system for C-profile rails
Cables > Accessories/spare parts for cable carrying system
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Lapp Group offers a cable conveying system for both flat and round cables.
Calculation tool on our website (in information center: cable accessories)
proceeds
- Careful cable ties prevent severe cable bending
- Dustproof ball bearings (wheels) ensure smooth ride on the rails
Scope of use
- Crane and transport machinery
- For elevators and transport facilities
- Machine building
- Washing facilities
- Not suitable for applications in explosive environments
Notice
- Round- and flat cables are not allowed to be combined side by side or below each other
- Do not mount more than three round cable clamps one underneath the other
- Radius of curvature on the bracket corresponds to the value of a fixed installation
- Energy trolleys with addition "b" are suitable for cables with large bending radius (see data sheet)
Delivery
- Delivery length profile rail C 6 m
Product composition
- The installation of a system depends on various criteria, for example: maximum cable drop (weight of the cable) and working duration.
ETS Classification 5
- ETIM 5.0 Class-ID: EC002935
- ETIM 5.0 Class-Description: Energy Carrier Accessory
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC002935
- ETIM 6.0 Class-Description: Energy Carrier Accessory
General
- Max load capacity: C30 system: 20 kg C40 system: 32 kg
Material
- Metal parts: galvanized steel Tweezers: polyamide 6
Temperature range
- from -40 °C to +120 °C
