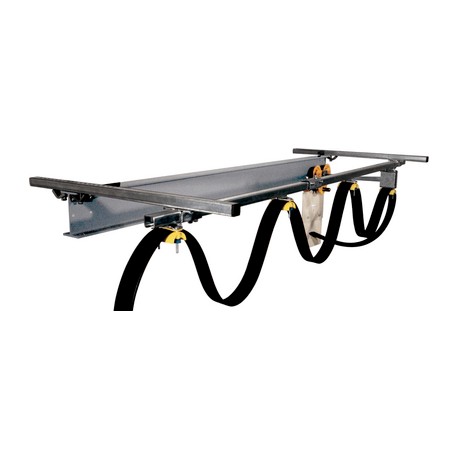

62200459 End clamp flat C40 35x97 LAPP End clamp flat C40 35x97
62200459
62200459
End clamp flat C40 35x97
LAPP
1 Pcs.
Cables > Accessories/spare parts for cable carrying system
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp 62200459 end clamp flat C40 35x97 acts as a heavy-duty physical barrier at the end of C-profile festoon tracks to keep cable trolleys securely contained. This component prevents mechanical over-travel and maintains operational safety on gantry cranes and material handling tracks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Max load capacity: C30 system: 20 kg C40 system: 32 kg
- Metal parts: galvanized steel Tweezers: polyamide 6
- ETIM 5.0 Class-ID: EC002935
- ETIM 5.0 Class-Description: Energy Carrier Accessory
- ETIM 6.0 Class-ID: EC002935
- ETIM 6.0 Class-Description: Energy Carrier Accessory
More info
▲Lapp Group offers a cable conveying system for both flat and round cables.
Calculation tool on our website (in information center: cable accessories)
proceeds
- Careful cable ties prevent severe cable bending
- Dustproof ball bearings (wheels) ensure smooth ride on the rails
Scope of use
- Crane and transport machinery
- For elevators and transport facilities
- Machine building
- Washing facilities
- Not suitable for applications in explosive environments
Notice
- Round- and flat cables are not allowed to be combined side by side or below each other
- Do not mount more than three round cable clamps one underneath the other
- Radius of curvature on the bracket corresponds to the value of a fixed installation
- Energy trolleys with addition "b" are suitable for cables with large bending radius (see data sheet)
Delivery
- Delivery length profile rail C 6 m
Product composition
- The installation of a system depends on various criteria, for example: maximum cable drop (weight of the cable) and working duration.
ETS Classification 5
- ETIM 5.0 Class-ID: EC002935
- ETIM 5.0 Class-Description: Energy Carrier Accessory
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC002935
- ETIM 6.0 Class-Description: Energy Carrier Accessory
General
- Max load capacity: C30 system: 20 kg C40 system: 32 kg
Material
- Metal parts: galvanized steel Tweezers: polyamide 6
Temperature range
- from -40 °C to +120 °C
