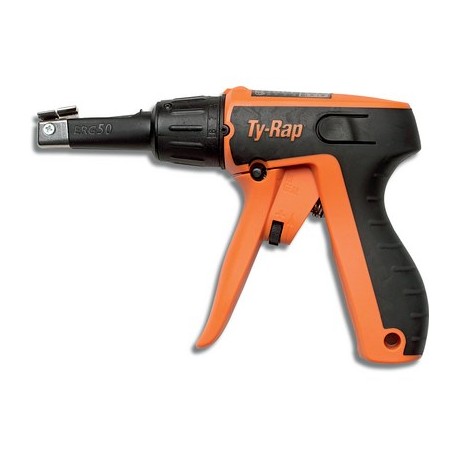

LAPP 62120120 62120120 MOUNTING PISTOL TY-GUN ERG 50 LAPP MOUNTING PISTOL TY-GUN ERG 50 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

62120120 MOUNTING PISTOL TY-GUN ERG 50 LAPP MOUNTING PISTOL TY-GUN ERG 50

62120120

62120120

MOUNTING PISTOL TY-GUN ERG 50

LAPP

1 Pcs.

MOUNTING PISTOL TY-GUN ERG 50 Ty-Gun ERG 50 / Ty-Gun ERG 120 Cable tie pliers

Cables > Cable tie tool
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mounting pistol is a heavy-duty cable tie tensioning device designed to speed up large-scale wire bundling and harness fabrication in industrial settings. This Lapp 62120120 tool combines an ergonomic grip with reliable cutting action to optimize technician productivity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length x width x height: 178x127x38 mm
  • ERG 50: Black head
  • ERG 120: Orange head
  • ETIM 5.0 Class-ID: EC000453
  • ETIM 5.0 Class-Description: Cable tie tool
  • ETIM 6.0 Class-ID: EC000453
  • ETIM 6.0 Class-Description: Cable tie tool

More info

▲

Benefits

  • Tip can be rotated 360° for easy assembly
  • Adjustable tension-setting and automatic cutting mechanism
  • Large feed-opening (25,4 mm width) facilitates inserting of the cable ties
  • Ergonomic design (rounded design) and user-friendliness
  • Reduced user stress and strain

Application range

  • Cable tie gun for plastic cable ties
  • Allows quick and economical binding, fixing and mounting of plastic cable ties
  • Increased service life due to the optimal tension setting for each cable tie
  • Waste prevention on the floor- cable tie rests were prevented from falling down

Product features

  • Adjustable grip diameter enables adaption to the hand size of the user
  • Anti-recoil mechanism prevents shaking
  • Easy and practical storage of the replacement blades inside the tool (one replacemet blade is included inside the tool)
  • Lightweight
  • Nose made of stainless steel guarantees a longer lifetime of the tool

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000453
  • ETIM 5.0 Class-Description: Cable tie tool

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000453
  • ETIM 6.0 Class-Description: Cable tie tool

Caution

  • Tension is manually adjustable

Note

  • Length x width x height:
    178x127x38 mm
  • ERG 50: 65-83 N for setting 1,
    175-220 N for setting 8
    ERG 120: 175-250 N for setting 1,
    450-580 N for setting 8

Colour delivered

  • ERG 50: Black head
  • ERG 120: Orange head

Material

  • Shock-resistant polymer
  • Soft rubber grip
