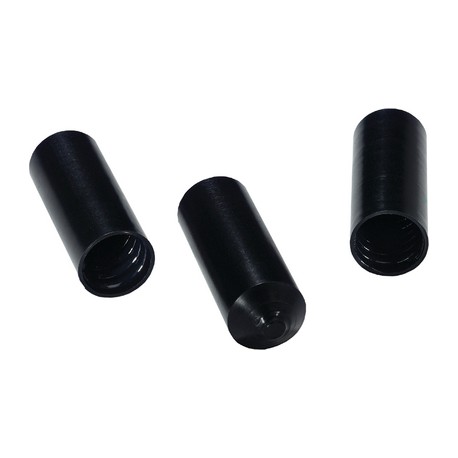

61830010 TERMINATION CAP TEC 25/9 LAPP TERMINATION CAP TEC 25/9
61830010
61830010
TERMINATION CAP TEC 25/9
LAPP
10 Pcs.
Automation > Shrink end cap
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp termination cap (61830010 TEC 25/9) functions as a heat-shrink environmental seal that protects unused cable ends from moisture, corrosion, and dirt. Maintenance crews and panel assemblers use these components during installation and storage phases to safeguard cable integrity. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Shrink temperature: 135°C
- ETIM 5.0 Class-ID: EC000218
- ETIM 5.0 Class-Description: Heat-shrink end cap
- ETIM 6.0 Class-ID: EC000218
- ETIM 6.0 Class-Description: Heat-shrink end cap
More info
▲TEC sealing caps with adhesive coating inside can be used for insulating and sealing of cable splices.
Benefits
- Secure sealing through thermoplastic adhesive coating on the inside
- Good resistance to chemicals and solvents
- Ensures high tensile strength and mechanical protection
Application range
- For sealing cable ends against the seepage of moisture and contaminants
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000218
- ETIM 5.0 Class-Description: Heat-shrink end cap
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000218
- ETIM 6.0 Class-Description: Heat-shrink end cap
General
- UV-resistant
- Double-walled
Colour delivered
- Black
Material
- Cross-linked modified polyolefin, with thermoplastic adhesive coating inside
- Halogen-free and silicone-free
Temperature range
- -55°C to +100 °C
- Shrink temperature: 135°C
