View larger
Images are for illustrative purposes only. Please refer to data sheet for details

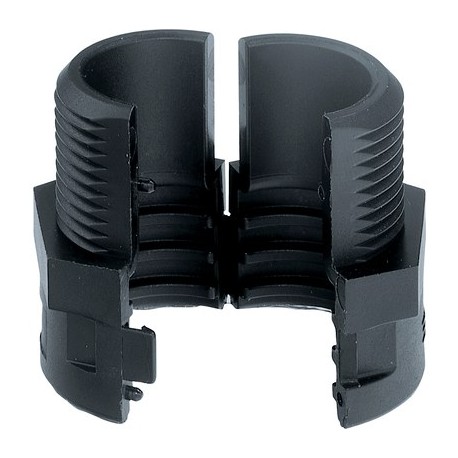

61806682 SILVYN SPLIT COV 20 M25x1,5 BK LAPP SILVYN SPLIT COV 20 M25x1,5 BK
61806682
61806682
SILVYN SPLIT COV 20 M25x1,5 BK
LAPP
50 Pcs.
SILVYN SPLIT COV 20 M25x1,5 BK
SILVYN® SPLIT COV-M
Automation > Screw connection for corrugated plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SILVYN® SPLIT COV is a divisable conduit fitting for subsequent installation with the divisible conduit SILVYN® SPLIT
Benefits
- Fast and easy assembly
- Subsequent mountable conduit insertion
Application range
- In combination with protective conduit:
- SILVYN® SPLIT
- Mechanical engineering
- Electrical industry
- Used in areas where cables and wires need to be protected after assembly
Product features
- divisable counter nut with metric thread
Note
- UV-resistant and weather-resistant
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001176
- ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001176
- ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose
Colour delivered
- Black (RAL 9005), UV-resistant
Material
- Halogen-free PA
Temperature range
- -40°C to +120°C
