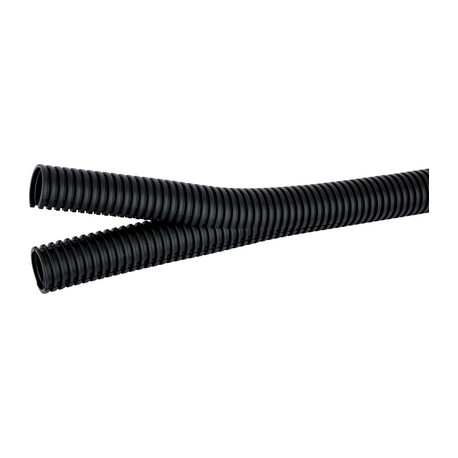

LAPP 61806650 61806650 SILVYN SPLIT PA6 23 / 23,4x30,8 BK LAPP SILVYN SPLIT PA6 23 / 23,9X31,3 BK 50M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61806650 SILVYN SPLIT PA6 23 / 23,4x30,8 BK LAPP SILVYN SPLIT PA6 23 / 23,9X31,3 BK 50M

61806650

61806650

SILVYN SPLIT PA6 23 / 23,4x30,8 BK

LAPP

50 m.

SILVYN SPLIT PA6 23 / 23,9X31,3 BK 50M SILVYN® SPLIT

Automation > Corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 61806650 split corrugated plastic hose provides a reliable protective routing channel for industrial wiring systems and cable harnesses. Flexible conduit assemblies of this type are widely utilized in machine building and control panel construction to shield delicate conductors from mechanical abrasion and environmental contaminants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • PA6: -40°C to +120°C PP : -40°C to +135°C PP UV: -40°C to +105°C: -40°C to +120°C PP : -40°C to +135°C PP UV: -40°C to +105°C
  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

More info

▲

SILVYN® SPLIT is a parallel corrugated, divisible conduit that is qualified for subsequent installation

Subsequent cable protection

Benefits

  • Dimensionally stable
  • Flexible
  • Crush-resistant
  • Low rodent-protection
  • Fast and easy assembly

Application range

  • Vehicle construction
  • Shipbuilding
  • Mechanical engineering
  • Electrical industry
  • Used in areas where cables and wires need to be protected after assembly

Product features

  • Halogen-free (PA6)
  • Abrasion-resistant
  • High resistance to oil, petrol, acids and other chemicals
  • Very good UV- and Weathering performance (SILVYN® SPLIT PP UV)

Product Make-up

  • Divisable corrugated conduit

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

On request

  • Polyamide 12 version (highly flexible)
  • ETFE version (high-temperature resistant up to +200°C)

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Polyamide 6 (PA6)
    Polypropylene (PP)

Protection rating

  • IP 43 with SILVYN® SPLIT COV

Temperature range

  • PA6 : -40°C to +120°C
    PP : -40°C to +135°C
    PP UV: -40°C to +105°C
