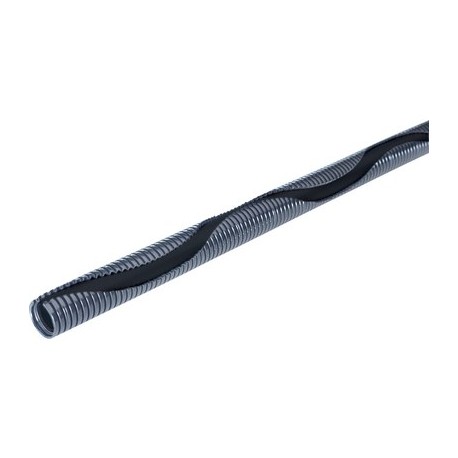

LAPP 61806575 61806575 SILVYN SINUS PA6 21,3x25,4 BK LAPP SILVYN SINUS PA6 21,3x25,4 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61806575 SILVYN SINUS PA6 21,3x25,4 BK LAPP SILVYN SINUS PA6 21,3x25,4 BK

61806575

61806575

SILVYN SINUS PA6 21,3x25,4 BK

LAPP

50 m.

SILVYN SINUS PA6 21,3x25,4 BK SILVYN® SINUS PA6

Automation > Corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a Lapp 61806575 SILVYN SINUS PA6 corrugated plastic hose, this part provides dependable routing solutions for electrical lines. Protective conduits help maintain organized layouts while guarding conductors against external abrasion and moisture within industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

More info

▲

SILVYN® SINUS PA6 is a parallel corrugated, sinusoidal slitted conduit that remains closed even under torsional movement

  • Sinusodial slit for subsequent assembly
  • Made of special heat-resistant polyamide up to +140°C

Benefits

  • Sinusoidal slit remains closed under torsion for the most part
  • Dimensionally stable
  • Flexible
  • Crush-resistant
  • Subsequent cable protection

Application range

  • Solar applications
  • Shipbuilding
  • Mechanical engineering
  • Electrical industry

Product features

  • High resistance to oil, petrol, acids and other chemicals
  • Halogen and cadmium-free
  • Abrasion-resistant

Product Make-up

  • Fine-profile corrugated polyamide 6 conduit with sinusodial slit

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

Note

  • Elongation at tear in accordance with DIN 53 455: 50 - 200 %
    Impact resistance in accordance with DIN 53 453: without rupture
    Notched impact resistance in accordance with DIN 53 453: without rupture
    Flammability rating: UL 94HB

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • PA6 heat-modified
    Cadmium-free
    Halogen-free

Temperature range

  • -40°C to +140°C
