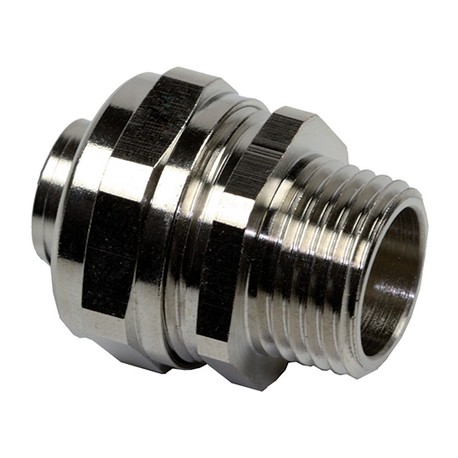

LAPP 61803832 61803832 SILVYN COMPACT NPT 1/2" 3/8" NPB LAPP SILVYN COMPACT NPT 1/2" 3/8" NPB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61803832 SILVYN COMPACT NPT 1/2" 3/8" NPB LAPP SILVYN COMPACT NPT 1/2" 3/8" NPB

61803832

61803832

SILVYN COMPACT NPT 1/2" - 3/8" NPB

LAPP

10 Pcs.

SILVYN COMPACT NPT 1/2" - 3/8" NPB SILVYN® COMPACT NPT

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 61803832 screw connection for protective metallic hose enables dependable cable management and secure transitions into control panels or junction boxes. These connectors maintain organized cable paths while shielding conductors from environmental factors in demanding industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Sealing: polyamide O-ring: NBR
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

Benefits

  • Space-saving application
  • For high mechanical stress
  • High tensile strength
  • Corrosion-resistant

Application range

  • In combination with protective conduit:
  • Suitable for SILVYN® HTDL/EF/OR/HCX/HFX
  • Mechanical engineering
  • Railway applications

Product Make-up

  • NPT connection thread
  • Hexagonal collar
  • Threaded sleeve
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Norm references / Approvals

  • UL 514B

Material

  • Body: nickel-plated brass
    Sealing: polyamide
    O-ring: NBR

Protection rating

  • IP 67

Temperature range

  • -45°C to +105°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
