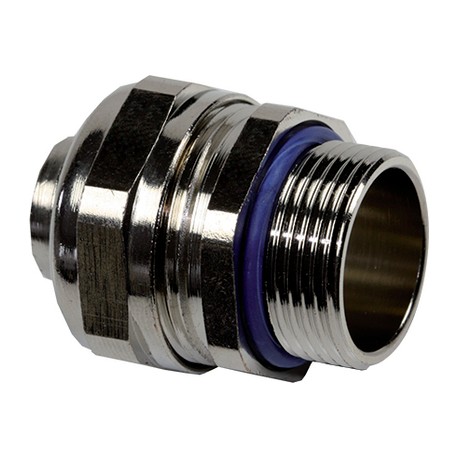

LAPP 61803821 61803821 SILVYN COMPACT PG 36 NPB LAPP SILVYN COMPACT PG 36 NPB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61803821 SILVYN COMPACT PG 36 NPB LAPP SILVYN COMPACT PG 36 NPB

61803821

61803821

SILVYN COMPACT PG 36 NPB

LAPP

2 Pcs.

SILVYN COMPACT PG 36 NPB SILVYN® COMPACT PG

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 61803821 acts as a screw connection for protective metallic hose, offering secure termination for large-diameter conduit assemblies. Industrial facilities use these specialized fittings to guard power and control cables against physical damage in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Sealing: polyamide O-ring: NBR
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

SILVYN® COMPACT PG - nickel-plated brass conduit fitting with polished surface that offers IP67 protection

Space-saving due to compact dimensions

Benefits

  • Space-saving application
  • For high mechanical stress
  • High tensile strength
  • Corrosion-resistant

Application range

  • In combination with protective conduit:
  • Suitable for SILVYN® HTDL/EF/OR/HCX/HFX
  • Mechanical engineering
  • Railway applications

Product Make-up

  • PG connection thread
  • Hexagonal collar
  • Threaded sleeve
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Norm references / Approvals

  • UL 514B

Material

  • Body: nickel-plated brass
    Sealing: polyamide
    O-ring: NBR

Protection rating

  • IP 67

Temperature range

  • -45°C to +105°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
