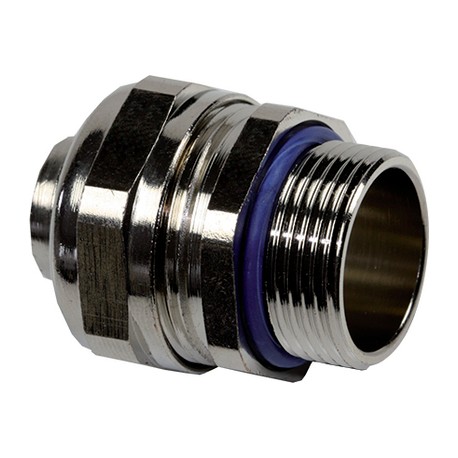

LAPP 61803817 61803817 SILVYN COMPACT PG 13,5 NPB LAPP SILVYN COMPACT PG 13,5 NPB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61803817 SILVYN COMPACT PG 13,5 NPB LAPP SILVYN COMPACT PG 13,5 NPB

61803817

61803817

SILVYN COMPACT PG 13,5 NPB

LAPP

10 Pcs.

SILVYN COMPACT PG 13,5 NPB SILVYN® COMPACT PG

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 61803817 screw connection for protective metallic hose couples flexible metal conduits to junction points across automated manufacturing systems. This component ensures reliable electrical continuity and mechanical protection for enclosed cable runs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Sealing: polyamide O-ring: NBR
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

SILVYN® COMPACT PG - nickel-plated brass conduit fitting with polished surface that offers IP67 protection

Space-saving due to compact dimensions

Benefits

  • Space-saving application
  • For high mechanical stress
  • High tensile strength
  • Corrosion-resistant

Application range

  • In combination with protective conduit:
  • Suitable for SILVYN® HTDL/EF/OR/HCX/HFX
  • Mechanical engineering
  • Railway applications

Product Make-up

  • PG connection thread
  • Hexagonal collar
  • Threaded sleeve
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Norm references / Approvals

  • UL 514B

Material

  • Body: nickel-plated brass
    Sealing: polyamide
    O-ring: NBR

Protection rating

  • IP 67

Temperature range

  • -45°C to +105°C
