View larger
Images are for illustrative purposes only. Please refer to data sheet for details

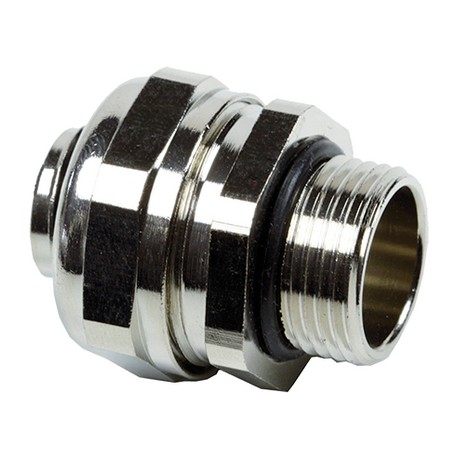

61803807 SILVYN COMPACT M63X1,5 NPB LAPP SILVYN COMPACT M63X1,5 NPB
61803807
61803807
SILVYN COMPACT M63X1,5 NPB
LAPP
2 Pcs.
SILVYN COMPACT M63X1,5 NPB
SILVYN® COMPACT M
Automation > Screw connection for protective metallic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SILVYN® COMPACT M is a nickel-plated brass conduit fitting with polished surface that offers IP67 protection
Space-saving due to compact dimensions
Benefits
- Space-saving application
- For high mechanical stress
- High tensile strength
- Corrosion-resistant
Application range
- In combination with protective conduit:
- Suitable for SILVYN® HTDL/EF/OR/HCX/HFX
- Mechanical engineering
- Railway applications
Product Make-up
- Metric connection thread
- Hexagonal collar
- Threaded sleeve
- Cap nut
Note
- PG threaded versions are to be found in the online catalogue
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Norm references / Approvals
- UL 514B
On request
- Available in stainless steel
Material
- Body: nickel-plated brass
Sealing: polyamide
O-ring: NBR
Protection rating
- IP 66
IP 67
Temperature range
- -45°C to +105°C
