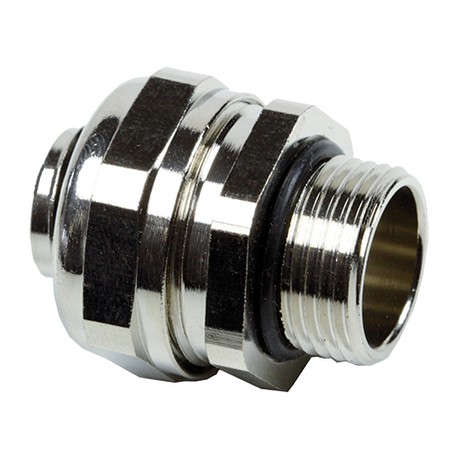

61803800 SILVYN COMPACT M16X1,5 NPB LAPP SILVYN COMPACT M16X1,5 NPB
61803800
61803800
SILVYN COMPACT M16X1,5 NPB
LAPP
10 Pcs.
Automation > Screw connection for protective metallic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as a screw connection for protective metallic hose, the Lapp 61803800 fitting secures and seals flexible conduit runs in demanding automation setups. Industrial panel builders and machine manufacturers rely on such hardware to maintain reliable cable protection and strain relief across dynamic operating environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Body: nickel-plated brass
- Sealing: polyamide
- O-ring: NBR
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
More info
▲SILVYN® COMPACT M is a nickel-plated brass conduit fitting with polished surface that offers IP67 protection
Space-saving due to compact dimensions
Benefits
- Space-saving application
- For high mechanical stress
- High tensile strength
- Corrosion-resistant
Application range
- In combination with protective conduit:
- Suitable for SILVYN® HTDL/EF/OR/HCX/HFX
- Mechanical engineering
- Railway applications
Product Make-up
- Metric connection thread
- Hexagonal collar
- Threaded sleeve
- Cap nut
Note
- PG threaded versions are to be found in the online catalogue
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Norm references / Approvals
- UL 514B
On request
- Available in stainless steel
Material
- Body: nickel-plated brass
Sealing: polyamide
O-ring: NBR
Protection rating
- IP 66
IP 67
Temperature range
- -45°C to +105°C
