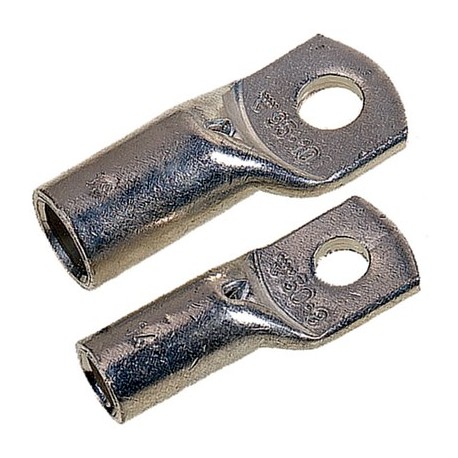

LAPP 61803280 61803280 KRF/120-12 LAPP TUBE CABLE LUGS KRF/120-12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61803280 KRF/120-12 LAPP TUBE CABLE LUGS KRF/120-12

61803280

61803280

KRF/120-12

LAPP

25 Pcs.

TUBE CABLE LUGS KRF/120-12 Tube cable lugs KR/ KRT/ KRF

Cables > Tubular cable lug for copper conductors
Connection engineering

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Benefits

  • With inspection hole (starting from 4 mm2)
  • High-quality electrolytic copper ensures a good crimping quality

Application range

  • KR: For fine and multi-wire copper conductors (class 2 an 5) with a cross-sectional range of 0.75 -10.00 mm²
  • KRT: For multi-wire copper conductors (class 2)with a cross-sectional range of 10 - 1000 mm²
  • KRF: For fine wire copper conductors (class 2, 5 and 6) with a cross-sectional range of 16 - 800 mm²
  • Mainly for connection to rails and to copper connectors
  • Max. 48 kV

Norm references / Approvals

  • UL file number: E205350 (see table)
  • In combination with recommended crimp tool fulfill requirments of EN-IEC 61238:1, BS 4579:1 and VDE 0220:1

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001051
  • ETIM 5.0 Class-Description: Tube cable lug for copper conductors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001051
  • ETIM 6.0 Class-Description: Tube cable lug for copper conductors

Material

  • Tinned electrolyte copper (Cu/Sn4 , tin surface of 4µ)

Temperature range

  • Temperature range up to +90°C
  • Working temperature: 110°C, max. +140°C
