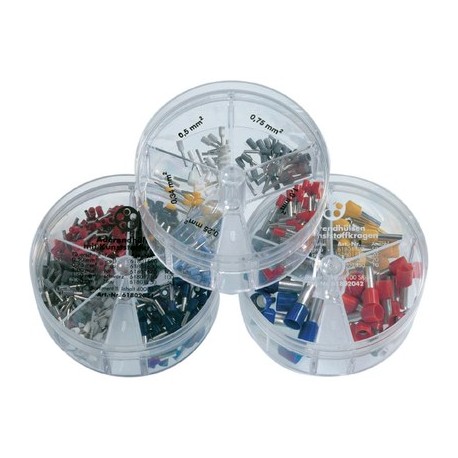

LAPP 61802042 61802042 DIN ASSORTMENT BOX III END SLEEVE LAPP DIN ASSORTMENT BOX III END SLEEVE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61802042 DIN ASSORTMENT BOX III END SLEEVE LAPP DIN ASSORTMENT BOX III END SLEEVE

61802042

61802042

DIN ASSORTMENT BOX III END SLEEVE

LAPP

1 Pcs.

DIN ASSORTMENT BOX III END SLEEVE DIN assorted boxes conductor end sleeves

Automation > Assortment box for installation- and connection material
Connection engineering

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplied in a multi-compartment kit, these DIN assortment boxes house essential conductor end sleeves for control panel wiring. They offer technicians a quick way to access correctly sized ferrules during maintenance tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • DIN assortment box III: 40 x 4.00 - 10 mm GY, 20 x 6.0 - 12 mm YE, 20 x 10.00 - 12 mm RD, 10 x 16.00 - 12 mm BU
  • ETIM 5.0 Class-ID: EC000524
  • ETIM 5.0 Class-Description: Assortment box for installation- and connection material
  • ETIM 6.0 Class-ID: EC000524
  • ETIM 6.0 Class-Description: Assortment box for installation- and connection material

More info

▲

The DIN conductor end sleeves are stored in a practical box with an assortment of cross-sections, making them readily available.

Benefits

  • Convenient assortment boxes - several diameters always at your fingertips

Norm references / Approvals

  • The insulated conductor end sleeves are in accordance with DIN 46228, part 4 (0.25 mm² and 0.34 mm² not standardised) in assortment boxes

Product Make-up

  • DIN assortment box I:
    30 x 0.25 - 6 mm BU, 30 x 0.34 - 6 mm YE, 30 x 0.5 - 8 mm WH, 30 x 0.75 - 8 mm GY, 30 x 1.00 - 8 mm RD
  • DIN assortment box II:
    50 x 0.5 - 8 mm WH, 100 x 0.75 - 8 mm GY, 100 x 1.00 - 8 mm RD, 100 x 1.5 - 8 mm BK, 50 x 2.5 - 8 mm BU
  • DIN assortment box III:
    40 x 4.00 - 10 mm GY, 20 x 6.0 - 12 mm YE, 20 x 10.00 - 12 mm RD, 10 x 16.00 - 12 mm BU

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000524
  • ETIM 5.0 Class-Description: Assortment box for installation- and connection material

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000524
  • ETIM 6.0 Class-Description: Assortment box for installation- and connection material
