View larger
Images are for illustrative purposes only. Please refer to data sheet for details
61802041 DIN ASSORTMENT BOX II END SLEEVE LAPP DIN ASSORTMENT BOX II END SLEEVE
61802041
61802041
DIN ASSORTMENT BOX II END SLEEVE
LAPP
1 Pcs.
DIN ASSORTMENT BOX II END SLEEVE
DIN assorted boxes conductor end sleeves
Automation > Assortment box for installation- and connection material
Connection engineering
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info

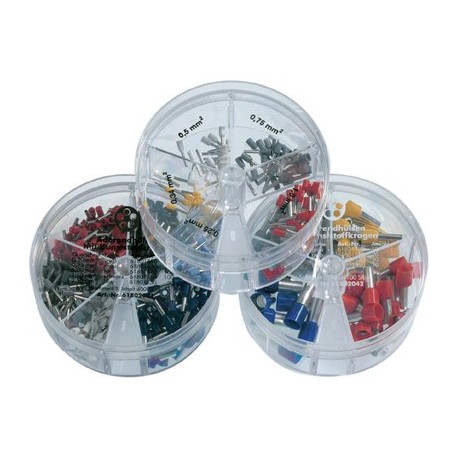

▲The DIN conductor end sleeves are stored in a practical box with an assortment of cross-sections, making them readily available.
Benefits
- Convenient assortment boxes - several diameters always at your fingertips
Norm references / Approvals
- The insulated conductor end sleeves are in accordance with DIN 46228, part 4 (0.25 mm² and 0.34 mm² not standardised) in assortment boxes
Product Make-up
- DIN assortment box I:
30 x 0.25 - 6 mm BU, 30 x 0.34 - 6 mm YE, 30 x 0.5 - 8 mm WH, 30 x 0.75 - 8 mm GY, 30 x 1.00 - 8 mm RD - DIN assortment box II:
50 x 0.5 - 8 mm WH, 100 x 0.75 - 8 mm GY, 100 x 1.00 - 8 mm RD, 100 x 1.5 - 8 mm BK, 50 x 2.5 - 8 mm BU - DIN assortment box III:
40 x 4.00 - 10 mm GY, 20 x 6.0 - 12 mm YE, 20 x 10.00 - 12 mm RD, 10 x 16.00 - 12 mm BU
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000524
- ETIM 5.0 Class-Description: Assortment box for installation- and connection material
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000524
- ETIM 6.0 Class-Description: Assortment box for installation- and connection material
