61801920 AHI DIN L 35/25 RD LAPP END SLEEVES AHI DIN L 35/25 RD
61801920
61801920
AHI DIN L 35/25 RD
LAPP
50 Pcs.
Cables > Cable end sleeve
Connection engineering
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manage high-capacity electrical feeds safely using the Lapp 61801920 AHI DIN L 35/25 RD end sleeve. Large insulated conductor ferrules protect thick stranded cables from fraying and provide robust, dependable terminations in industrial power distribution networks.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Surface: tin-plated
- ETIM 5.0 Class-ID: EC000005
- ETIM 5.0 Class-Description: Cable end sleeve
- ETIM 6.0 Class-ID: EC000005
- ETIM 6.0 Class-Description: Cable end sleeve
More info

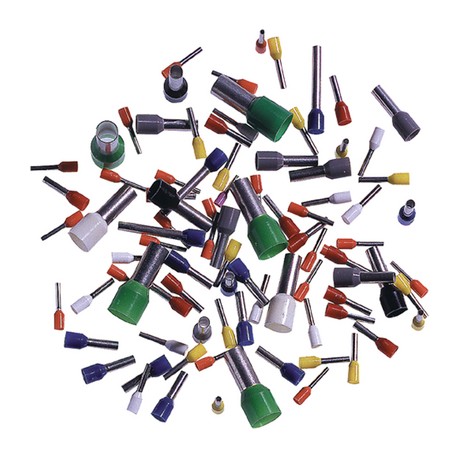

▲Conductor end sleeves with insulation for cabinet builders , according to DIN or German colour code, halogen-free
Now with UL approval
Benefits
- Funnel-shaped opening makes it easy to slip them onto the strands
- The conductor is permanently connected to the collar by crimping
Application range
- Control cabinets and equipment wiring
- For cables with category 2,5 and 6 conductors
- Not suitable for solid conductors
Norm references / Approvals
- All DIN conductor end-sleeves are in accordance with DIN 46228 Part 4
- UL File No. E507990, see table
- Fire behaviour according to UL 94 HB
Note
- From 16mm sleeve length (l2) 2x crimp
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000005
- ETIM 5.0 Class-Description: Cable end sleeve
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000005
- ETIM 6.0 Class-Description: Cable end sleeve
Note
- Halogen-free
Material
- Copper/PP
- Surface: tin-plated
Temperature range
- -5°C to +105°C
