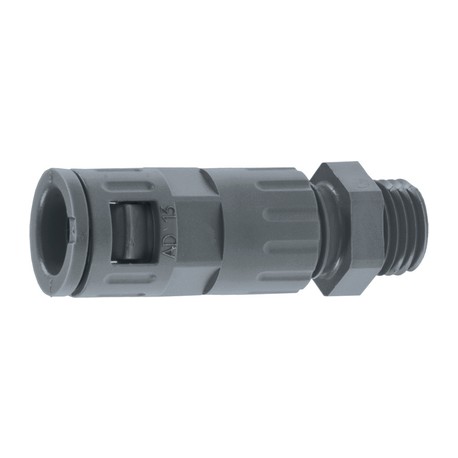

61801155 SILVYN KLICK GPZ PG 16 BK LAPP SILVYN KLICK GPZ PG 16 BK
61801155
61801155
SILVYN KLICK GPZ PG 16 BK
LAPP
10 Pcs.
Automation > Screw connection for corrugated plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 61801155 from Lapp serves as a screw connection for corrugated plastic hose, providing dependable mechanical pathways for protective conduits in control panels. Installers use these hardware connectors to maintain continuous cable organization and environmental protection throughout plant systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
- ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose
More info
▲SILVYN® KLICK-GPZ - PG conduit fitting with integrated cable strain relief for SILVYN® RILL
Benefits
- Fast assembly
- Easy to disassemble
- Additional cable strain relief
- Additional cable sealing
Application range
- In combination with protective conduit:
- SILVYN® RILL PA 6
- SILVYN® RILL PA 12
- Robot-building
- Used in areas where cables and wires need to be provided with strain relief and additional sealing
Norm references / Approvals
- UL FILENUMBER E308201
Product Make-up
- PG connection thread
- Cable gland
- Body with inner sealing
- Upper part with snap-in sleeve
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001176
- ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001176
- ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose
Colour delivered
- Grey (RAL 7031)
Black (RAL 9011), UV-resistant
Material
- PA6
Protection rating
- IP 68
- IP 69
Temperature range
- -40 °C to +115 °C
