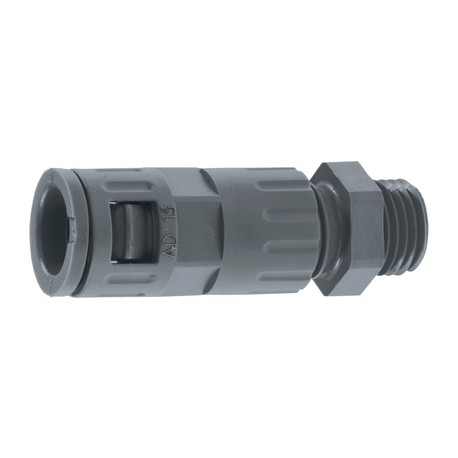

LAPP 61801135 61801135 SILVYN KLICK GPZ PG 9 BK LAPP SILVYN KLICK GPZ PG 9 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61801135 SILVYN KLICK GPZ PG 9 BK LAPP SILVYN KLICK GPZ PG 9 BK

61801135

61801135

SILVYN KLICK GPZ PG 9 BK

LAPP

20 Pcs.

SILVYN KLICK GPZ PG 9 BK SILVYN® KLICK-GPZ

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 61801135 screw connection secures corrugated plastic hoses onto standard threaded entries while providing integrated strain relief for sensitive internal conductor bundles. Such components are standard elements in control panel manufacturing and general machine building. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® KLICK-GPZ - PG conduit fitting with integrated cable strain relief for SILVYN® RILL

Benefits

  • Fast assembly
  • Easy to disassemble
  • Additional cable strain relief
  • Additional cable sealing

Application range

  • In combination with protective conduit:
  • SILVYN® RILL PA 6
  • SILVYN® RILL PA 12
  • Robot-building
  • Used in areas where cables and wires need to be provided with strain relief and additional sealing

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • PG connection thread
  • Cable gland
  • Body with inner sealing
  • Upper part with snap-in sleeve

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9011), UV-resistant

Material

  • PA6

Protection rating

  • IP 68
  • IP 69

Temperature range

  • -40 °C to +115 °C
