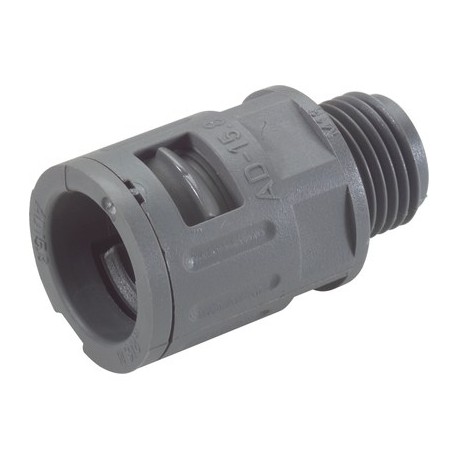

LAPP 61800860 61800860 SILVYN KLICK PG 7 GY LAPP SILVYN KLICK PG 7 GY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61800860 SILVYN KLICK PG 7 GY LAPP SILVYN KLICK PG 7 GY

61800860

61800860

SILVYN KLICK PG 7 GY

LAPP

50 Pcs.

SILVYN KLICK PG 7 GY SILVYN® KLICK PG

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for quick assembly, this Lapp 61800860 screw connection for corrugated plastic hose simplifies the installation of protective conduit networks. Technicians utilize such fittings to establish dependable attachment points between flexible tubing and electrical enclosures. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® KLICK PG - PG threaded conduit fitting for SILVYN® RILL

Benefits

  • Fast assembly
  • Easy to disassemble
  • High-tensile
  • High sealing performance
  • Can be rotated

Application range

  • In combination with protective conduit:
  • SILVYN® RILL PA 6
  • SILVYN® RILL PA 12
  • Robot-building
  • Rotating applications

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • PG connection thread
  • Body with inner sealing
  • Upper part with snap-in sleeve

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9011), UV-resistant

Material

  • PA6
  • Halogen-free

Protection rating

  • IP 68
  • IP 69

Temperature range

  • -40 °C to +115 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
