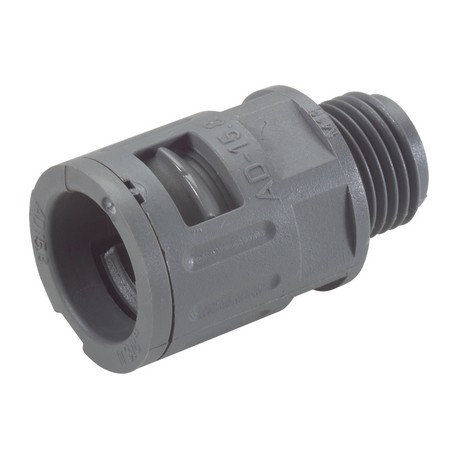

LAPP 61800785 61800785 SILVYN KLICK-GN, NPT 2", BLACK LAPP SILVYN KLICK-GN, NPT 2", BLACK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61800785 SILVYN KLICK-GN, NPT 2", BLACK LAPP SILVYN KLICK-GN, NPT 2", BLACK

61800785

61800785

SILVYN KLICK-GN, NPT 2", BLACK

LAPP

1 Pcs.

SILVYN KLICK-GN, NPT 2", BLACK SILVYN® KLICK NPT

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lapp part number 61800785 is a quick-assembly conduit fitting engineered to provide secure mechanical retention and reliable sealing when paired with flexible protective tubing. System builders use such components in robotics, machine tools, and factory installations to speed up assembly while protecting internal wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Lapp
  • Manufacturer part number: 61800785
  • Catalogue title: 61800785 SILVYN KLICK-GN, NPT 2

More info

▲

SILVYN® KLICK NPT

proceeds

  • Quick assembly
  • Easy disassembly
  • Traction resistant
  • Secure sealing
  • Revolving

Scope of use

  • In combination with protective tubes:
  • SILVYN® RILL PA 6
  • SILVYN® RILL PA 12
  • construction in robotics
  • Rotary applications

Reference Standards / Approvals

  • UL FILENUMBER E308201

Product composition

  • NPT connection thread
  • Body with internal joint
  • Top with snap-in termination

ETS Classification 5

  • ETIM 5.0 Class ID: EC001176
  • Description of class ETIM 5.0: threaded connection for corrugated polyamide tube

Available colors

  • Black (RAL 9005), UV resistant

Material

  • PA6
  • Halogen-free

Degree of protection:

  • IP 68
  • IP 69

Temperature range

  • -40 °C to +115 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
