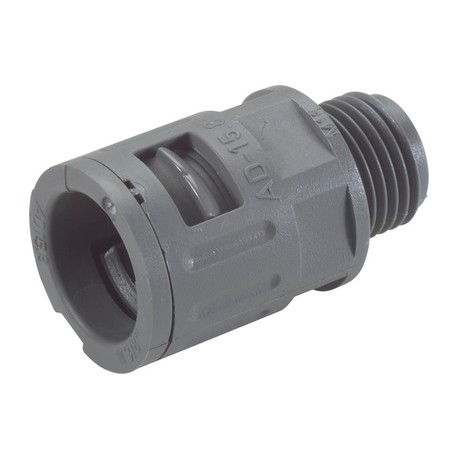

LAPP 61800765 61800765 SILVYN KLICK-GN,NPT 1" BK LAPP SILVYN KLICK-GN,NPT 1" BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61800765 SILVYN KLICK-GN,NPT 1" BK LAPP SILVYN KLICK-GN,NPT 1" BK

61800765

61800765

SILVYN KLICK-GN,NPT 1" BK

LAPP

25 Pcs.

SILVYN KLICK-GN,NPT 1" BK SILVYN® KLICK NPT

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 61800765 is a quick-mounting conduit connector built to join protective tubing securely while resisting mechanical pull-out forces in industrial setups. Maintenance engineers use these reliable connectors across plant machinery and automation cells to ensure robust cable protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Lapp
  • Manufacturer part number: 61800765
  • Catalogue title: 61800765 SILVYN KLICK-GN,NPT 1

More info

▲

SILVYN® KLICK NPT

proceeds

  • Quick assembly
  • Easy disassembly
  • Traction resistant
  • Secure sealing
  • Revolving

Scope of use

  • In combination with protective tubes:
  • SILVYN® RILL PA 6
  • SILVYN® RILL PA 12
  • construction in robotics
  • Rotary applications

Reference Standards / Approvals

  • UL FILENUMBER E308201

Product composition

  • NPT connection thread
  • Body with internal joint
  • Top with snap-in termination

ETS Classification 5

  • ETIM 5.0 Class ID: EC001176
  • Description of class ETIM 5.0: threaded connection for corrugated polyamide tube

Available colors

  • Black (RAL 9005), UV resistant

Material

  • PA6
  • Halogen-free

Degree of protection:

  • IP 68
  • IP 69

Temperature range

  • -40 °C to +115 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
