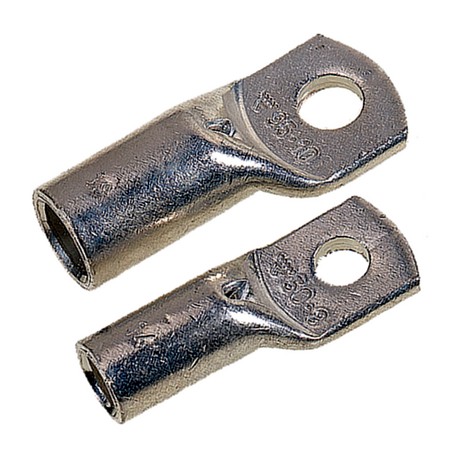

61796990 KRT/185-12 LAPP TUBE CABLE LUGS KRT/185-12
61796990
61796990
KRT/185-12
LAPP
25 Pcs.
Cables > Tubular cable lug for copper conductors
Connection engineering
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A tube cable lug, part number 61796990 from Lapp, provides a dependable termination point for heavy-gauge wiring in control cabinets and power transmission infrastructure. These electrical hardware components ensure optimal current transfer and mechanical stability when linking power cables to distribution blocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- KRT: For multi-wire copper conductors (class 2)with a cross-sectional range of 10 - 1000 mm²
- UL file number: E205350 (see table)
- Working temperature: 110°C, max. +140°C
- ETIM 5.0 Class-ID: EC001051
- ETIM 5.0 Class-Description: Tube cable lug for copper conductors
- ETIM 6.0 Class-ID: EC001051
- ETIM 6.0 Class-Description: Tube cable lug for copper conductors
More info
▲Tube cable lugs KR/KRT/KRF with inspection hole
Benefits
- With inspection hole (starting from 4 mm2)
- High-quality electrolytic copper ensures a good crimping quality
Application range
- KR: For fine and multi-wire copper conductors (class 2 an 5) with a cross-sectional range of 0.75 -10.00 mm²
- KRT: For multi-wire copper conductors (class 2)with a cross-sectional range of 10 - 1000 mm²
- KRF: For fine wire copper conductors (class 2, 5 and 6) with a cross-sectional range of 16 - 800 mm²
- Mainly for connection to rails and to copper connectors
- Max. 48 kV
Norm references / Approvals
- UL file number: E205350 (see table)
- In combination with recommended crimp tool fulfill requirments of EN-IEC 61238:1, BS 4579:1 and VDE 0220:1
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001051
- ETIM 5.0 Class-Description: Tube cable lug for copper conductors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001051
- ETIM 6.0 Class-Description: Tube cable lug for copper conductors
Material
- Tinned electrolyte copper (Cu/Sn4 , tin surface of 4µ)
Temperature range
- Temperature range up to +90°C
- Working temperature: 110°C, max. +140°C
