LAPP 61794810 61794810 DEZIBAND AHIB 2,50 BU LAPP CONDUCTOR END SLEEVES INSULATED BU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61794810 DEZIBAND AHIB 2,50 BU LAPP CONDUCTOR END SLEEVES INSULATED BU

61794810

61794810

DEZIBAND AHIB 2,50 BU

LAPP

1 Pcs.

CONDUCTOR END SLEEVES INSULATED BU Deciband AHIB

Cables > Cable end sleeve
Connection engineering

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A band-mounted Lapp end sleeve part number 61794810 facilitates automated processing and rapid manual loading of insulated wire ferrules for high-volume electrical harness assembly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Surface: tin-plated
  • ETIM 5.0 Class-ID: EC000005
  • ETIM 5.0 Class-Description: Cable end sleeve
  • ETIM 6.0 Class-ID: EC000005
  • ETIM 6.0 Class-Description: Cable end sleeve

More info

▲

insulated conductor end sleeves with mini-crimp seal, small packaging unit

Application range

  • Packs of insulated conductor end sleeves with mini-crimp seal

Included

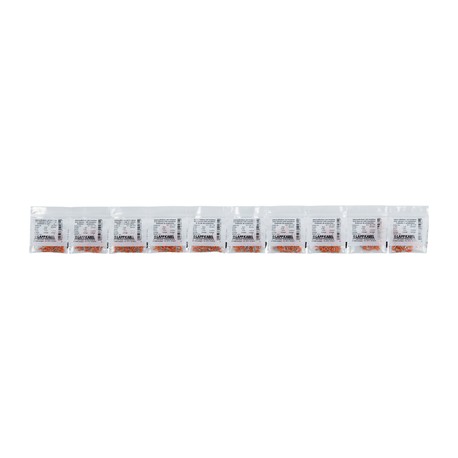

  • Insulated conductor end sleeves in standard length in strips with 10 linked mini-crimp bags of 100 conductor end sleeves
  • Mini crimp lock for individual separation of bags

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000005
  • ETIM 5.0 Class-Description: Cable end sleeve

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000005
  • ETIM 6.0 Class-Description: Cable end sleeve

General

  • Halogen-free

Material

  • Copper/PP
  • Surface: tin-plated

Temperature range

  • -5°C to +105°C
