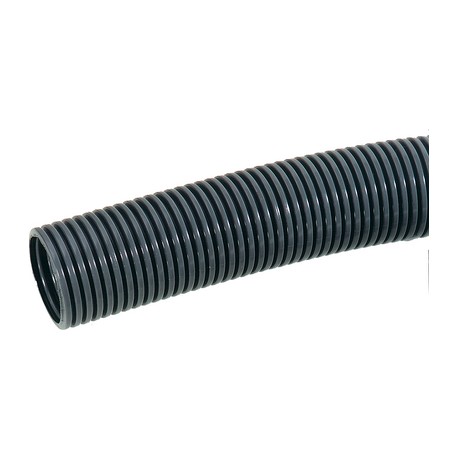

LAPP 61746935 61746935 SILVYN RILL PA 6 10 / 6,5x10 BK LAPP SILVYN RILL PA 6 10 / 6,5x10 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61746935 SILVYN RILL PA 6 10 / 6,5x10 BK LAPP SILVYN RILL PA 6 10 / 6,5x10 BK

61746935

61746935

SILVYN RILL PA 6 10 / 6,5x10 BK

LAPP

50 m.

SILVYN RILL PA 6 10 / 6,5x10 BK SILVYN® RILL PA 6

Automation > Corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A flexible corrugated plastic hose designed by Lapp, identified by part number 61746935. These protective hoses serve as dependable conduits for electrical wiring, preventing damage from tension, friction, and environmental impacts in machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

More info

▲

SILVYN® RILL PA6 is the classic parallel corrugated conduit that offers best protection due to its structure and versatile accessories

Maximum safety in the event of a fire

Benefits

  • Dimensionally stable
  • Flexible
  • High flame-retardance and self-extinguishing in accordance with UL 94V-0
  • Crush-resistant
  • Lightweight

Application range

  • Mechanical engineering
  • Public utilities
  • Railway applications / vehicle construction
  • Moving applications
  • Outdoor application (in black)

Product features

  • Halogen and cadmium-free
  • Abrasion-resistant
  • High resistance to oil, petrol, acids and other chemicals

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Fine-profile corrugated polyamide 6 conduit

Note

  • UV and weather-resistant in black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

Certifications

  • IEC EN 61386-23
    UL File No. E308201
    DNV, Lloyd's Register
    EN 45545-2 (HL-3)

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9011), UV-resistant

Material

  • PA 6
    Silicone-free
    Halogen-free
    Fire behaviour according to UL 94V-0

Temperature range

  • -40°C to +115°C
    short-term +150°C
