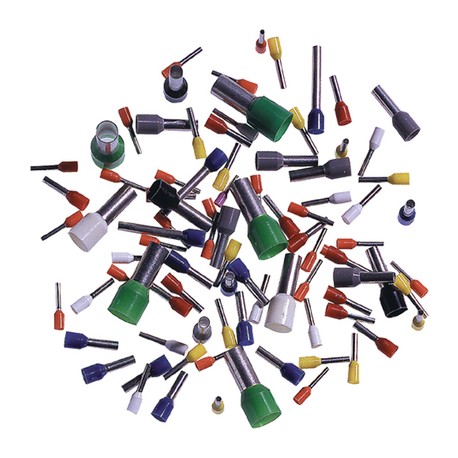

LAPP 61746800 61746800 AHI L 35/25 BE LAPP END SLEEVES AHI L 35/25 BE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61746800 AHI L 35/25 BE LAPP END SLEEVES AHI L 35/25 BE

61746800

61746800

AHI L 35/25 BE

LAPP

50 Pcs.

END SLEEVES AHI L 35/25 BE Conductor end sleeves insulated

Cables > Cable end sleeve
Connection engineering

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An extra-long barrel Lapp end sleeve part number 61746800 accommodates thick multi-strand power cables to guarantee secure contact and eliminate loose strands in industrial switchgear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Surface: tin-plated
  • ETIM 5.0 Class-ID: EC000005
  • ETIM 5.0 Class-Description: Cable end sleeve
  • ETIM 6.0 Class-ID: EC000005
  • ETIM 6.0 Class-Description: Cable end sleeve

More info

▲

Conductor end sleeves with insulation for cabinet builders , according to DIN or German colour code, halogen-free

Now with UL approval

Benefits

  • Funnel-shaped opening makes it easy to slip them onto the strands
  • The conductor is permanently connected to the collar by crimping

Application range

  • Control cabinets and equipment wiring
  • For cables with category 2,5 and 6 conductors
  • Not suitable for solid conductors

Norm references / Approvals

  • All DIN conductor end-sleeves are in accordance with DIN 46228 Part 4
  • UL File No. E507990, see table
  • Fire behaviour according to UL 94 HB

Note

  • From 16mm sleeve length (l2) 2x crimp

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000005
  • ETIM 5.0 Class-Description: Cable end sleeve

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000005
  • ETIM 6.0 Class-Description: Cable end sleeve

Note

  • Halogen-free

Material

  • Copper/PP
  • Surface: tin-plated

Temperature range

  • -5°C to +105°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
