61742465 PROTECT SET LAPP Shrink tube PROTECT Set
61742465
61742465
PROTECT SET
LAPP
1 Pcs.
Automation > Shrink tubing
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Featuring a diverse assortment of protective sleeves, the Lapp 61742465 heat-shrink tubing set supplies essential insulation for various wiring tasks. Workshop technicians keep shrink tubing kits on hand to quickly insulate and repair electrical connections during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Flame-retardant (except colour: clear): Yes
- UV-resistant (only colour: black): Yes
- UL 224 approval (except colour: transparent): Yes
- UL file no.: E476215 (except colour: transparent)
- Dielectric strength: 20 kV/mm
- Shrinking ratio: 2:1
- Shrinking temperature: +90°C
- ETIM 5.0 Class-ID: EC000217
- ETIM 5.0 Class-Description: Heat-shrink tubing
- ETIM 6.0 Class-ID: EC000217
- ETIM 6.0 Class-Description: Shrink tubing
More info

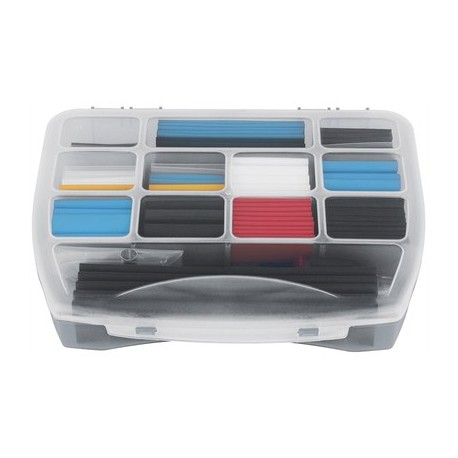

▲Shrink tube PROTECT Set contains an assortment of common shrinking tube sizes of PROTECT in an handy box. Set is mainly used for repair and maintenance purposes.
Benefits
- Convenient plastic kit with PROTECT shrink tubes including small hot air pistol
Application range
- For repair and maintenance, for small series production and in research and development
Product features
- Flame-retardant (except colour: clear)
- Silicone-free
- UV-resistant (only colour: black)
Norm references / Approvals
- UL 224 approval (except colour: transparent)
- UL file no.: E476215 (except colour: transparent)
Note
- Not resistant against engine oils
Included
- The shrink set in a practical case
- Assortment of common shrinking tube sizes of type PROTECT
- Content:
50x 50 mm Shrink tube PROTECT 1,6/0,8 BK
50x 50 mm Shrink tube PROTECT 1,6/0,8 TR
50 x 50 mm Shrink tube PROTECT 2,4/1,2 BK
50 x 50 mm Shrink tube PROTECT 2,4/1,2 TR
20 x 50 mm Shrink tube PROTECT 3,2/1,6 BK
20 x 50 mm Shrink tube PROTECT 3,2/1,6 TR
20 x 50 mm Shrink tube PROTECT 3,2/1,6 YE
20 x 50 mm Shrink tube PROTECT 3,2/1,6 WH
10 x 50 mm Shrink tube PROTECT 4,8/2,4 BK
10 x 50 mm Shrink tube PROTECT 4,8/2,4 TR
10 x 50 mm Shrink tube PROTECT 4,8/2,4 YE
10 x 50 mm Shrink tube PROTECT 4,8/2,4 BU
15 x 50 mm Shrink tube PROTECT 6,4/3,2 BK
15 x 50 mm Shrink tube PROTECT 6,4/3,2 WH
15 x 50 mm Shrink tube PROTECT 6,4/3,2 YE
15 x 50 mm Shrink tube PROTECT 6,4/3,2 BU
15 x 50 mm Shrink tube PROTECT 9,5/4,7 BK
15 x 50 mm Shrink tube PROTECT 9,5/4,7 BU
20 x 50 mm Shrink tube PROTECT 12,7/6,4 BK
20 x 50 mm Shrink tube PROTECT 12,7/6,4 RD
5 x 100 mm Shrink tube PROTECT 19,1/9,5 BK
5 x 100 mm Shrink tube PROTECT 19,1/9,5 BU
5 x 180 mm Shrink tube PROTECT 25,4/12,7 BK
1 x HOT GUN
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000217
- ETIM 5.0 Class-Description: Heat-shrink tubing
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000217
- ETIM 6.0 Class-Description: Shrink tubing
Note
- Thin walled
- Dielectric strength: 20 kV/mm
Info
- Shrinking ratio: 2:1
Material
- Cross-linked polyolefin
Temperature range
- -55°C to +135°C
- Shrinking temperature: +90°C
