61742439 PROTECT Box 6.4/3.2 TR LAPP Shrink tube PROTECT Box 6.4/3.2 TR
61742439
61742439
PROTECT Box 6.4/3.2 TR
LAPP
1 Pcs.
Automation > Shrink tubing
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp 61742439 shrink tube provides reliable mechanical protection, electrical insulation, and strain relief for cable splices, wire terminations, and electrical component connections in industrial panels. Heat-shrink tubing conforms securely around conductors and joints when exposed to heat, sealing out moisture, dust, and environmental contaminants while securing harnesses against vibration.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Green-yellow shrink tube: For identifying and marking earthing connectors and cables
- Flame-retardant (except colour: clear): Yes
- UV-resistant (only colour: black): Yes
- UL 224 approval (except colour: transparent): Yes
- UL file no.: E476215 (except colour: transparent)
- Dielectric strength: 20 kV/mm
- Shrinking ratio: 2:1
- Shrinking temperature: +90°C
- ETIM 5.0 Class-ID: EC000217
- ETIM 5.0 Class-Description: Heat-shrink tubing
- ETIM 6.0 Class-ID: EC000217
- ETIM 6.0 Class-Description: Shrink tubing
More info

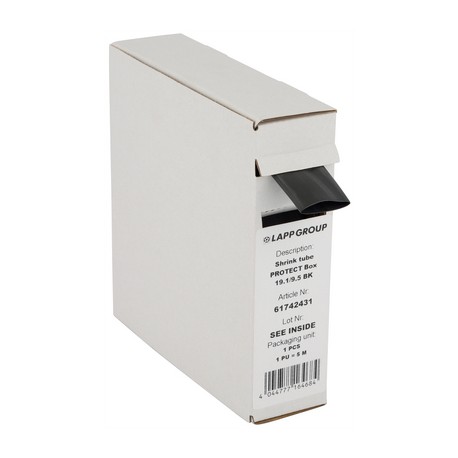

▲The shrinkable plastic conduit in an handy box is especially suitable for small-scale consumers.
Thin walled
Benefits
- Flexible
- Excellent physical and mechanical properties
- Approved for the use in North America and Canada
Application range
- Insulation, protection and cable bundling
- Green-yellow shrink tube: For identifying and marking earthing connectors and cables
Product features
- Flame-retardant (except colour: clear)
- Silicone-free
- UV-resistant (only colour: black)
Norm references / Approvals
- UL 224 approval (except colour: transparent)
- UL file no.: E476215 (except colour: transparent)
Note
- Not resistant against engine oils
Included
- Stackable boxes for easy storage
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000217
- ETIM 5.0 Class-Description: Heat-shrink tubing
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000217
- ETIM 6.0 Class-Description: Shrink tubing
On request
- Other colours are available upon request
Note
- Thin walled
- Dielectric strength: 20 kV/mm
Info
- Shrinking ratio: 2:1
Colour delivered
- Black
Transparent
Green-yellow
Material
- Cross-linked polyolefin
Temperature range
- -55°C to +135°C
- Shrinking temperature: +90°C
