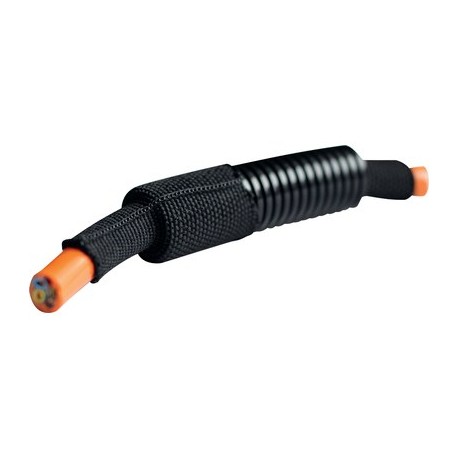

LAPP 61721273 61721273 SILVYN SHRINK BRAID PET 50-25 mm LAPP SILVYN SHRINK BRAID PET 50-25 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61721273 SILVYN SHRINK BRAID PET 50-25 mm LAPP SILVYN SHRINK BRAID PET 50-25 mm

61721273

61721273

SILVYN SHRINK BRAID PET 50-25 mm

LAPP

1 Pcs.

SILVYN SHRINK BRAID PET 50-25 mm SILVYN® SHRINK BRAID PET

Automation > Braided hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A shrink braid, provided as Lapp part number 61721273, integrates thermal-shrinking properties with protective braiding to secure electrical cable bundles. This versatile category of component is deployed where tight mechanical sealing and robust external shielding are simultaneously required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shrinking ratio: 2:1
  • -40 °C to +150 °C Processing: min. +180 °C
  • ETIM 5.0 Class-ID: EC001182
  • ETIM 5.0 Class-Description: Braided hose
  • ETIM 6.0 Class-ID: EC001182
  • ETIM 6.0 Class-Description: Braided hose

More info

▲

SILVYN® SHRINK BRAID PA6 - shrinkable braided sleeving

Shrinkable abrasion protection

Benefits

  • Additional abrasion protection for critical areas
  • Cut into length without frazzle on the conduit's end
  • Simple, fast cable bundling
  • Protection against dust

Application range

  • Easy cable protection
  • Additional insulation
  • Bundling and guiding of cables and wires
  • Low rodent-protection

Product features

  • Abrasion-resistant
  • Flexible
  • Shrinkable
  • Shrinking ratio: 2:1
  • Maximum length lost after shrinkage is less than 15 %

Product Make-up

  • Polyester - PET with shrinkable Polyolefin fibres

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001182
  • ETIM 5.0 Class-Description: Braided hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001182
  • ETIM 6.0 Class-Description: Braided hose

On request

  • Bulk containers on rolls
  • More sizes available

Note

  • No dielectric strength
  • Self extinguishing acc. to UL94 HB

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Polyester - PET with shrinkable Polyolefin fibres

Temperature range

  • -40 °C to +150 °C
    Processing: min. +180 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
