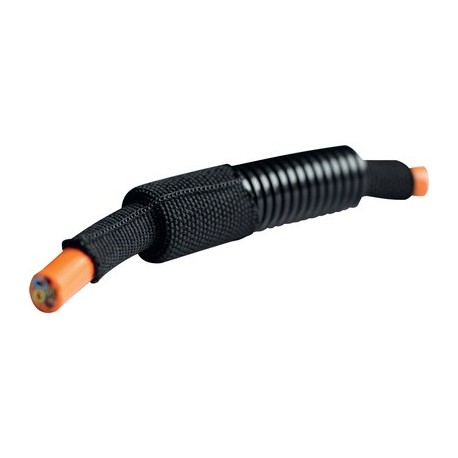

LAPP 61721271 61721271 SILVYN SHRINK BRAID PET 25-12 mm LAPP SILVYN SHRINK BRAID PET 25-12 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

61721271 SILVYN SHRINK BRAID PET 25-12 mm LAPP SILVYN SHRINK BRAID PET 25-12 mm

61721271

61721271

SILVYN SHRINK BRAID PET 25-12 mm

LAPP

1 Pcs.

SILVYN SHRINK BRAID PET 25-12 mm SILVYN® SHRINK BRAID PET

Automation > Braided hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a reliable method for securing and protecting cable looms, the Lapp 61721271 SILVYN SHRINK BRAID PET combines textile flexibility with thermal-shrinking mechanical reinforcement. This protective sleeve is frequently installed in machine building and control panel construction to prevent chafing and strain on vulnerable wire bundles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shrinking ratio: 2:1
  • ETIM 5.0 Class-ID: EC001182
  • ETIM 5.0 Class-Description: Braided hose
  • ETIM 6.0 Class-ID: EC001182
  • ETIM 6.0 Class-Description: Braided hose

More info

▲

SILVYN® SHRINK BRAID PA6 - shrinkable braided sleeving

Shrinkable abrasion protection

Benefits

  • Additional abrasion protection for critical areas
  • Cut into length without frazzle on the conduit's end
  • Simple, fast cable bundling
  • Protection against dust

Application range

  • Easy cable protection
  • Additional insulation
  • Bundling and guiding of cables and wires
  • Low rodent-protection

Product features

  • Abrasion-resistant
  • Flexible
  • Shrinkable
  • Shrinking ratio: 2:1
  • Maximum length lost after shrinkage is less than 15 %

Product Make-up

  • Polyester - PET with shrinkable Polyolefin fibres

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001182
  • ETIM 5.0 Class-Description: Braided hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001182
  • ETIM 6.0 Class-Description: Braided hose

On request

  • Bulk containers on rolls
  • More sizes available

Note

  • No dielectric strength
  • Self extinguishing acc. to UL94 HB

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Polyester - PET with shrinkable Polyolefin fibres

Temperature range

  • -40 °C to +150 °C
    Processing: min. +180 °C
