View larger

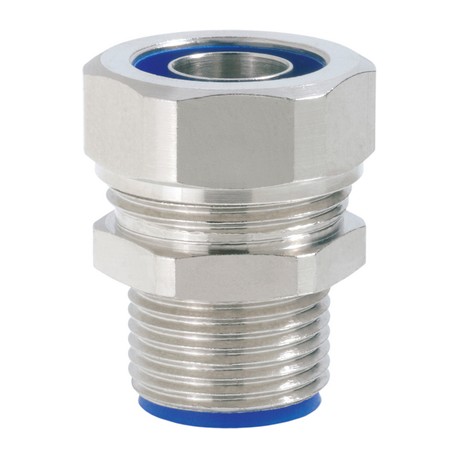

55510280 SILVYN LTPG-M 50x1,5 NPB LAPP SILVYN LTPG-M 50x1,5 NPB
55510280
55510280
SILVYN LTPG-M 50x1,5 NPB
LAPP
1 Pcs.
Automation > Screw connection for protective metallic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp 55510280 screw connection secures protective metallic hoses to industrial enclosures, ensuring reliable strain relief and mechanical stability for internal wiring. Such components are typically employed in machine building and control cabinet assemblies to protect cables from mechanical damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Body: nickel-plated brass Seal: PA compression seal
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
More info
▲SILVYN® LTPG-M is a nickel-plated brass conduit fitting that offers an protection degree up to IP66/67/68/69
Benefits
- High tensile strength
- Vibration protection
- High sealing performance
Application range
- In combination with protective conduit:
- SILVYN® LTP
- Applications with high mechanical stress
- Used in areas where liquids are present
Product Make-up
- Metric connection thread
- Hexagonal collar
- Threaded sleeve
- Cap nut
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Certifications
- IEC EN 61386-23
Material
- Body: nickel-plated brass
Seal: PA compression seal
Protection rating
- IP66
IP67
IP68 (5 bar)
IP69
Temperature range
- -50°C to +135°C
