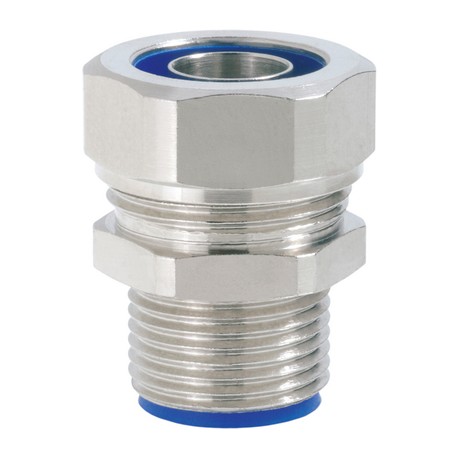

LAPP 55510230 55510230 SILVYN LTPG-M 20x1,5/1 NPB LAPP SILVYN LTPG-M 20x1,5/1 NPB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55510230 SILVYN LTPG-M 20x1,5/1 NPB LAPP SILVYN LTPG-M 20x1,5/1 NPB

55510230

55510230

SILVYN LTPG-M 20x1,5/1 NPB

LAPP

10 Pcs.

SILVYN LTPG-M 20x1,5/1 NPB SILVYN® LTPG-M

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for secure cable protection, the 55510230 screw connection for protective metallic hose by Lapp connects flexible metallic tubing to machine housings. System integrators apply these components to maintain continuous strain relief and block contaminant entry at panel interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Seal: PA compression seal
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

SILVYN® LTPG-M is a nickel-plated brass conduit fitting that offers an protection degree up to IP66/67/68/69

Benefits

  • High tensile strength
  • Vibration protection
  • High sealing performance

Application range

  • In combination with protective conduit:
  • SILVYN® LTP
  • Applications with high mechanical stress
  • Used in areas where liquids are present

Product Make-up

  • Metric connection thread
  • Hexagonal collar
  • Threaded sleeve
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Certifications

  • IEC EN 61386-23

Material

  • Body: nickel-plated brass
    Seal: PA compression seal

Protection rating

  • IP66
    IP67
    IP68 (5 bar)
    IP69

Temperature range

  • -50°C to +135°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
