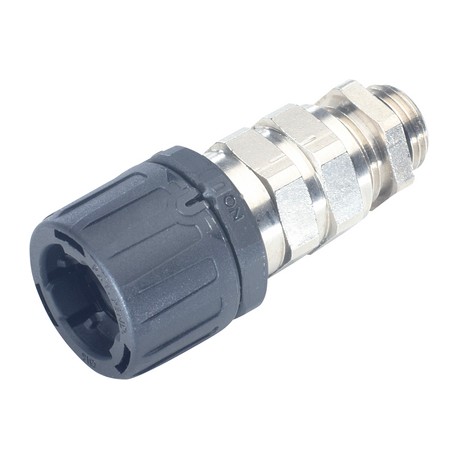

LAPP 55507125 55507125 SILVYN KSE-M 20x1,5/1 BK LAPP SILVYN KSE-M 20x1,5/1 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55507125 SILVYN KSE-M 20x1,5/1 BK LAPP SILVYN KSE-M 20x1,5/1 BK

55507125

55507125

SILVYN KSE-M 20x1,5/1 BK

LAPP

10 Pcs.

SILVYN KSE-M 20x1,5/1 BK SILVYN® KSE-M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 55507125 screw connection for corrugated plastic hose terminates protective conduits securely while maintaining high sealing performance at enclosure entry points. This hardware safeguards internal cables from dust and moisture in industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conduit: IP66 Cable: IP68
  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® KSE-M - metric conduit fitting with integrated EMC screening for SILVYN® FPAS

Benefits

  • Fast assembly
  • Vibration protection
  • Additional cable strain relief
  • Additional cable sealing
  • Optimum screen connection (EMC)

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Used in areas where screened cables and wires need to have additional protection

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • EMC cable gland
  • Upper part with integrated all-round toothing

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

On request

  • without EMC contacts

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Nickel-plated brass
    PA66
    Halogen-free

Protection rating

  • Conduit: IP66
    Cable: IP68

Temperature range

  • -30°C to +100°C
