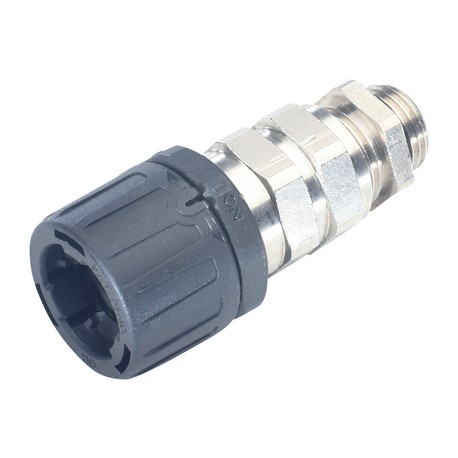

LAPP 55507105 55507105 SILVYN KSE-M 16x1,5/1 BK LAPP SILVYN KSE-M 16x1,5/1 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55507105 SILVYN KSE-M 16x1,5/1 BK LAPP SILVYN KSE-M 16x1,5/1 BK

55507105

55507105

SILVYN KSE-M 16x1,5/1 BK

LAPP

10 Pcs.

SILVYN KSE-M 16x1,5/1 BK SILVYN® KSE-M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Offering dual-layer sealing properties, the 55507105 SILVYN KSE-M 16x1,5/1 BK LAPP SILVYN KSE-M 16x1,5/1 BK manufactured by Lapp functions as a screw connection for corrugated plastic hose. This hardware is commonly deployed across machine building and panel construction sectors to route and protect internal wiring against fluid ingress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conduit: IP66 Cable: IP68
  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

Benefits

  • Fast assembly
  • Vibration protection
  • Additional cable strain relief
  • Additional cable sealing
  • Optimum screen connection (EMC)

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Used in areas where screened cables and wires need to have additional protection

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • EMC cable gland
  • Upper part with integrated all-round toothing

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

On request

  • without EMC contacts

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • Nickel-plated brass
    PA66
    Halogen-free

Protection rating

  • Conduit: IP66
    Cable: IP68

Temperature range

  • -30°C to +100°C
