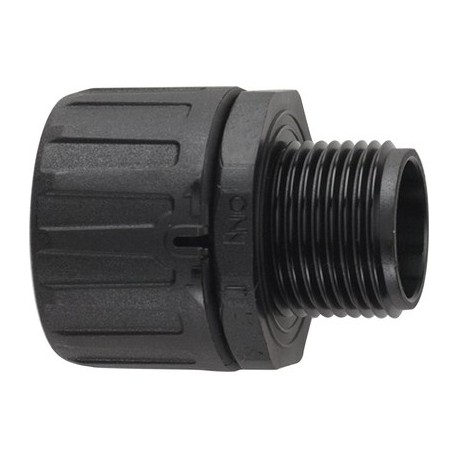

LAPP 55506605 55506605 SILVYN FPAG PG 9 BK LAPP SILVYN FPAG PG 9 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55506605 SILVYN FPAG PG 9 BK LAPP SILVYN FPAG PG 9 BK

55506605

55506605

SILVYN FPAG PG 9 BK

LAPP

10 Pcs.

SILVYN FPAG PG 9 BK SILVYN

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to serve as a secure screw connection for corrugated plastic hose, this Lapp component fastens protective tubing directly to enclosure walls or distribution boxes. Proper anchoring preserves the integrity of internal wire harnesses in heavy plant environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® FPAG PG - conduit fitting for SILVYN® FPAS

Benefits

  • Fast assembly
  • High-tensile
  • Sealing
  • Vibration protection

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Applications with strong vibrations

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • PG connection thread
  • Body
  • Upper part with integrated all-round toothing

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP 66

Temperature range

  • -50°C to +135°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
