Product Overview

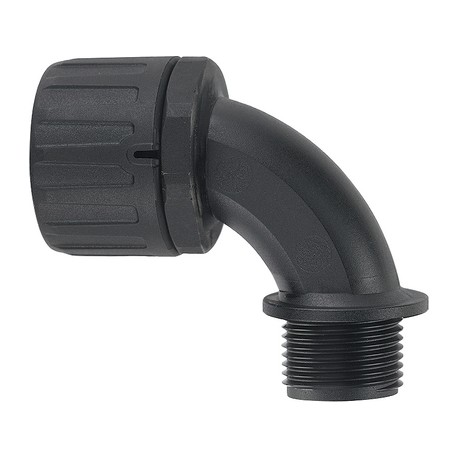

A ninety-degree screw connection for corrugated plastic hose, part number 55506545 by Lapp, facilitates clean, space-saving conduit routing in confined electrical enclosures. This connector maintains continuous mechanical protection for wire bundles making sharp directional transitions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® FPAG 90° M - conduit fitting for SILVYN® FPAS

Benefits

  • 90° elbow allows easy installation
  • Fast assembly
  • High-tensile
  • Sealing
  • Vibration protection

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Applications with strong vibrations
  • For applications with limited space

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • 90° elbow
  • Body
  • Upper part with integrated all-round toothing

Note

  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP66

Temperature range

  • -50°C to +135°C
