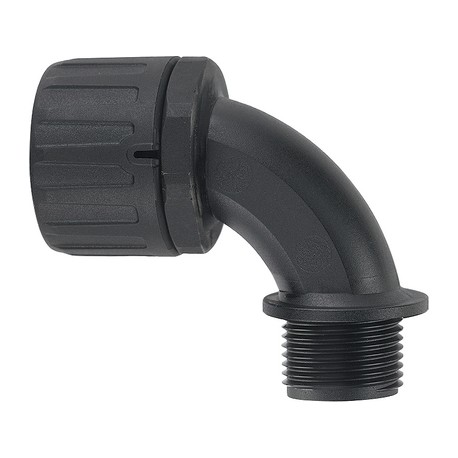

LAPP 55506495 55506495 SILVYN FPAG 90° M16x1,5/1 BK LAPP SILVYN FPAG 90° M16x1,5/1 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55506495 SILVYN FPAG 90° M16x1,5/1 BK LAPP SILVYN FPAG 90° M16x1,5/1 BK

55506495

55506495

SILVYN FPAG 90° M16x1,5/1 BK

LAPP

10 Pcs.

SILVYN FPAG 90° M16x1,5/1 BK SILVYN® FPAG 90° M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a 55506495 Silvyn FPAG 90° M16x1,5/1 BK Lapp Silvyn FPAG 90° M16x1,5/1 BK, this right-angle component directs protective hose assemblies around tight corners. Industrial automation systems use these angular screw connections to prevent hose kinking and maintain unobstructed cable pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® FPAG 90° M - conduit fitting for SILVYN® FPAS

Benefits

  • 90° elbow allows easy installation
  • Fast assembly
  • High-tensile
  • Sealing
  • Vibration protection

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Applications with strong vibrations
  • For applications with limited space

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • 90° elbow
  • Body
  • Upper part with integrated all-round toothing

Note

  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP66

Temperature range

  • -50°C to +135°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
