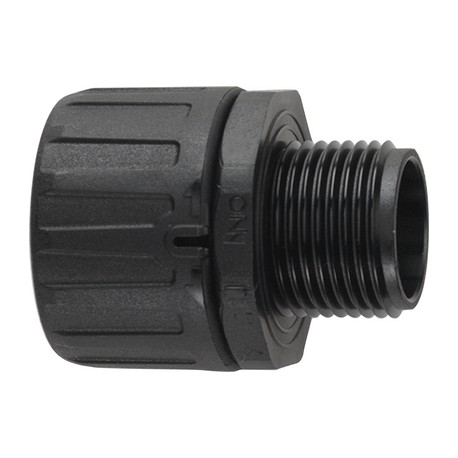

LAPP 55506345 55506345 SILVYN FPAG M20x1,5/2 BK LAPP SILVYN FPAG M20x1,5/2 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55506345 SILVYN FPAG M20x1,5/2 BK LAPP SILVYN FPAG M20x1,5/2 BK

55506345

55506345

SILVYN FPAG M20x1,5/2 BK

LAPP

10 Pcs.

SILVYN FPAG M20x1,5/2 BK SILVYN® FPAG-M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplied by Lapp under part number 55506345, this screw connection for corrugated plastic hose maintains reliable cable routing.

Threaded hose connectors bridge the gap between flexible protective conduits and fixed machinery enclosures, ensuring smooth cable transitions across diverse industrial layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

Benefits

  • Fast assembly
  • High-tensile
  • Sealing
  • Vibration protection

Application range

  • In combination with protective conduit:
  • SILVYN® FPAS
  • Applications with strong vibrations

Product features

  • In black colour UV-resistant and weather-proofed
  • Removeable with a screwdriver

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • Upper part with integrated all-round toothing

Note

  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP 66

Temperature range

  • -50°C to +135°C
