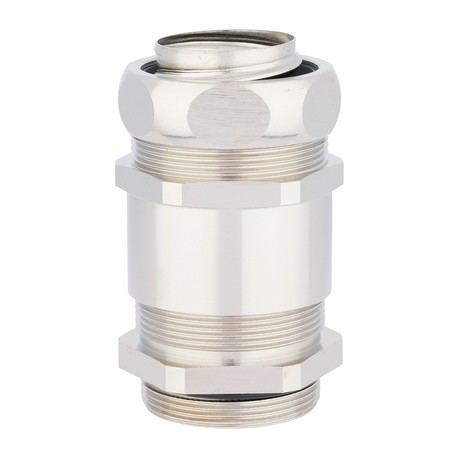

LAPP 55506097 55506097 SILVYN MSK-M 63x1,5 EDU LAPP SILVYN MSK-M 63x1,5 EDU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55506097 SILVYN MSK-M 63x1,5 EDU LAPP SILVYN MSK-M 63x1,5 EDU

55506097

55506097

SILVYN MSK-M 63x1,5 EDU

LAPP

1 Pcs.

SILVYN MSK-M 63x1,5 EDU SILVYN® MSK-M US

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 55506097 screw connection for protective metallic hose provides heavy-duty termination for large-diameter flexible conduits in major industrial plants. Such components ensure that major cable arteries remain shielded from physical damage and environmental ingress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Basis type: Body: nickel-plated brass Conduit connector seal: CR/NBR Tube seal: TPE
  • Cable: IP 68 Conduit: IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU IP 65 with SILVYN® AS-P
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

SILVYN® MSK-U-M - nickel-plated brass conduit fitting with integrated cable strain relief

Integrated SKINTOP®cable strain relief

Benefits

  • Optimum cable and conduit strain relief
  • Maximum cable sealing
  • Fast and easy assembly
  • Wide clamping range
  • Anti-turn protection

Application range

  • In combination with protective conduit:
  • SILVYN®AS/AS-P/EDU-AS/EMC AS-CU
  • Indoor / outdoor applications
  • Used in areas where cables and wires need to be provided with strain relief and additional sealing

Product features

  • Combination of SILVYN® and SKINTOP®

Product Make-up

  • Optional:
  • SKINTOP® MS-M cable gland or
  • SKINTOP® MS-SC-M EMC connection
  • SILVYN® conduit connection via inner sleeve and cap nut

Note

  • For suitable accessories, refer to SKINTOP® metric accessories

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Material

  • Basis type:
    Body: nickel-plated brass
    Conduit connector seal: CR/NBR
    Tube seal: TPE

Protection rating

  • Cable: IP 68
    Conduit:
    IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU
    IP 65 with SILVYN® AS-P

Temperature range

  • -30°C to +100°C
