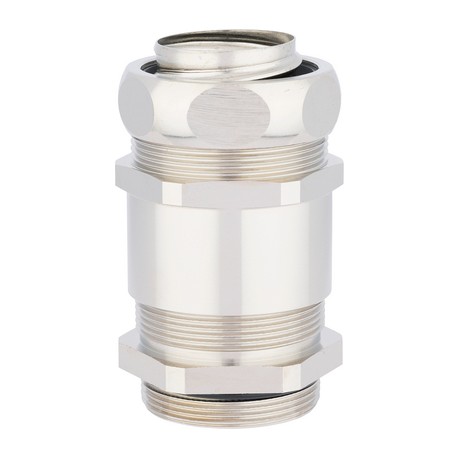

LAPP 55506094 55506094 SILVYN MSK-M 32x1,5 EDU LAPP SILVYN MSK-M 32x1,5 EDU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55506094 SILVYN MSK-M 32x1,5 EDU LAPP SILVYN MSK-M 32x1,5 EDU

55506094

55506094

SILVYN MSK-M 32x1,5 EDU

LAPP

5 Pcs.

SILVYN MSK-M 32x1,5 EDU SILVYN® MSK-M US

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Lapp, part number 55506094 is a SILVYN MSK-M 32x1,5 EDU LAPP SILVYN MSK-M 32x1,5 EDU functioning as a screw connection for protective metallic hoses to secure cable entry points on enclosures. Protective hose screw connections ensure a dependable mechanical anchor and reliable environmental sealing for industrial control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Basis type: Body: nickel-plated brass Conduit connector seal: CR/NBR Tube seal: TPE
  • Cable: IP 68 Conduit: IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU IP 65 with SILVYN® AS-P
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

SILVYN® MSK-U-M - nickel-plated brass conduit fitting with integrated cable strain relief

Integrated SKINTOP®cable strain relief

Benefits

  • Optimum cable and conduit strain relief
  • Maximum cable sealing
  • Fast and easy assembly
  • Wide clamping range
  • Anti-turn protection

Application range

  • In combination with protective conduit:
  • SILVYN®AS/AS-P/EDU-AS/EMC AS-CU
  • Indoor / outdoor applications
  • Used in areas where cables and wires need to be provided with strain relief and additional sealing

Product features

  • Combination of SILVYN® and SKINTOP®

Product Make-up

  • Optional:
  • SKINTOP® MS-M cable gland or
  • SKINTOP® MS-SC-M EMC connection
  • SILVYN® conduit connection via inner sleeve and cap nut

Note

  • For suitable accessories, refer to SKINTOP® metric accessories

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Material

  • Basis type:
    Body: nickel-plated brass
    Conduit connector seal: CR/NBR
    Tube seal: TPE

Protection rating

  • Cable: IP 68
    Conduit:
    IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU
    IP 65 with SILVYN® AS-P

Temperature range

  • -30°C to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
