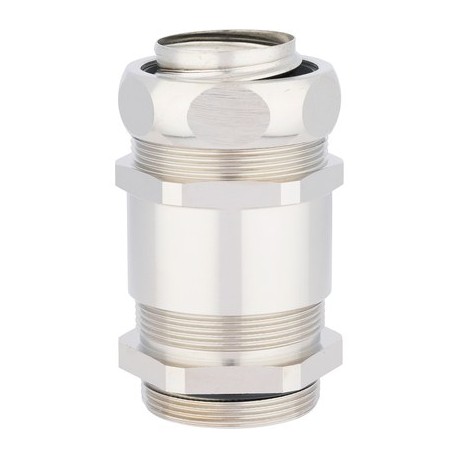

LAPP 55506093 55506093 SILVYN MSK-M 25x1,5 EDU LAPP SILVYN MSK-M 25x1,5 EDU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55506093 SILVYN MSK-M 25x1,5 EDU LAPP SILVYN MSK-M 25x1,5 EDU

55506093

55506093

SILVYN MSK-M 25x1,5 EDU

LAPP

5 Pcs.

SILVYN MSK-M 25x1,5 EDU SILVYN® MSK-M US

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to serve as a screw connection for protective metallic hose, the Lapp 55506093 SILVYN MSK-M 25x1,5 EDU provides dependable cable routing and environmental sealing. Such connectors are routinely integrated into electrical distribution panels and automated machinery to shield internal conductors from mechanical strain. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Basis type: Body: nickel-plated brass
  • Conduit connector seal: CR/NBR
  • Tube seal: TPE
  • Cable: IP 68
  • Conduit: IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU IP 65 with SILVYN® AS-P
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

SILVYN® MSK-U-M - nickel-plated brass conduit fitting with integrated cable strain relief

Integrated SKINTOP®cable strain relief

Benefits

  • Optimum cable and conduit strain relief
  • Maximum cable sealing
  • Fast and easy assembly
  • Wide clamping range
  • Anti-turn protection

Application range

  • In combination with protective conduit:
  • SILVYN®AS/AS-P/EDU-AS/EMC AS-CU
  • Indoor / outdoor applications
  • Used in areas where cables and wires need to be provided with strain relief and additional sealing

Product features

  • Combination of SILVYN® and SKINTOP®

Product Make-up

  • Optional:
  • SKINTOP® MS-M cable gland or
  • SKINTOP® MS-SC-M EMC connection
  • SILVYN® conduit connection via inner sleeve and cap nut

Note

  • For suitable accessories, refer to SKINTOP® metric accessories

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Material

  • Basis type:
    Body: nickel-plated brass
    Conduit connector seal: CR/NBR
    Tube seal: TPE

Protection rating

  • Cable: IP 68
    Conduit:
    IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU
    IP 65 with SILVYN® AS-P

Temperature range

  • -30°C to +100°C
