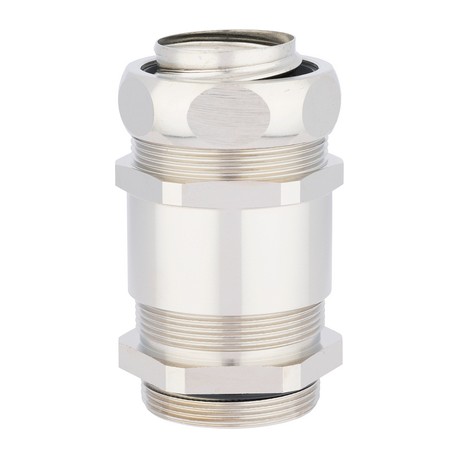

55506081 SILVYN MSK-M 16x1,5 AS LAPP SILVYN MSK-M 16x1,5 AS
55506081
55506081
SILVYN MSK-M 16x1,5 AS
LAPP
5 Pcs.
Automation > Screw connection for protective metallic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 55506081 SILVYN MSK-M 16x1,5 AS LAPP SILVYN MSK-M 16x1,5 AS from Lapp is a screw connection for protective metallic hose, engineered to secure and seal conduit lines in demanding industrial setups. Cable protection assemblies rely on these fittings to maintain environmental integrity at entry points, preventing dust and moisture ingress while providing strain relief for internal wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Basis type: Body: nickel-plated brass Conduit connector seal: CR/NBR Tube seal: TPE
- Cable: IP 68 Conduit: IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU IP 65 with SILVYN® AS-P
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
More info
▲SILVYN® MSK-U-M - nickel-plated brass conduit fitting with integrated cable strain relief
Integrated SKINTOP®cable strain relief
Benefits
- Optimum cable and conduit strain relief
- Maximum cable sealing
- Fast and easy assembly
- Wide clamping range
- Anti-turn protection
Application range
- In combination with protective conduit:
- SILVYN®AS/AS-P/EDU-AS/EMC AS-CU
- Indoor / outdoor applications
- Used in areas where cables and wires need to be provided with strain relief and additional sealing
Product features
- Combination of SILVYN® and SKINTOP®
Product Make-up
- Optional:
- SKINTOP® MS-M cable gland or
- SKINTOP® MS-SC-M EMC connection
- SILVYN® conduit connection via inner sleeve and cap nut
Note
- For suitable accessories, refer to SKINTOP® metric accessories
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Material
- Basis type:
Body: nickel-plated brass
Conduit connector seal: CR/NBR
Tube seal: TPE
Protection rating
- Cable: IP 68
Conduit:
IP 40 with SILVYN® AS, EDU-AS, EMC AS-CU
IP 65 with SILVYN® AS-P
Temperature range
- -30°C to +100°C
