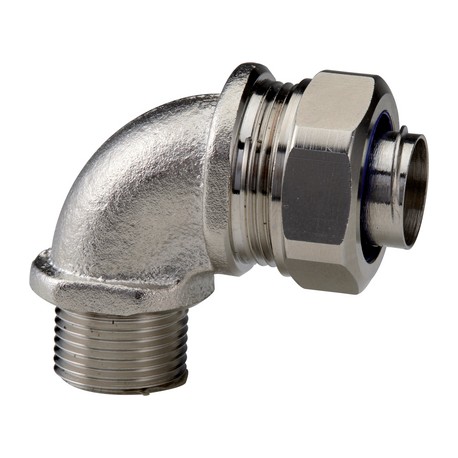

LAPP 55503235 55503235 SILVYN LCW-M16x1,5/2 LAPP SILVYN LCW-M16x1,5/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55503235 SILVYN LCW-M16x1,5/2 LAPP SILVYN LCW-M16x1,5/2

55503235

55503235

SILVYN LCW-M16x1,5/2

LAPP

10 Pcs.

SILVYN LCW-M16x1,5/2 SILVYN® LCW-M

Automation > Screw connection for protective metallic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 55503235 SILVYN LCW-M16x1,5/2 is a screw connection for protective metallic hose designed to route and protect internal conductors within heavy industrial machinery. Industrial environments rely on these fittings to secure flexible conduits against pulling forces and mechanical vibration at enclosure entry points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Body: nickel-plated brass Seal: PA compression seal
  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose
  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

More info

▲

Benefits

  • High tensile strength
  • Vibration protection
  • Enhanced sealing

Application range

  • In combination with protective conduit:
  • SILVYN®LCC-2 / LCCH-2
  • Applications with high mechanical stress
  • Used in areas where liquids are present

Product Make-up

  • Metric connection thread
  • 90° hexagonal collar
  • Threaded sleeve
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Norm references / Approvals

Material

  • Body: nickel-plated brass
    Seal: PA compression seal

Protection rating

  • IP 65

Temperature range

  • -50°C to +135°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
