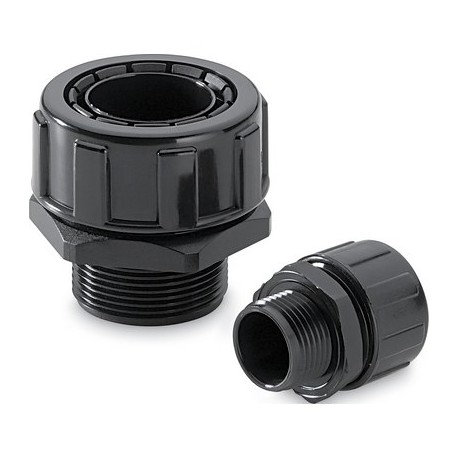

LAPP 55502494 55502494 SILVYN MPC PG13/2 BK LAPP SILVYN MPC PG13/2 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55502494 SILVYN MPC PG13/2 BK LAPP SILVYN MPC PG13/2 BK

55502494

55502494

SILVYN MPC PG13/2 BK

LAPP

10 Pcs.

SILVYN MPC PG13/2 BK SILVYN® MPC

Automation > Screw connection for protective plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for reliable conduit anchoring, the Lapp 55502494 screw connection for protective plastic hose secures flexible tubing to electrical enclosures. This component ensures robust mechanical retention in complex industrial wiring systems.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose
  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

More info

▲

Benefits

  • All-purpose
  • Fast and easy assembly

Application range

  • In combination with protective conduit:
  • SILVYN® EL/ELU/ELO/ELT/ELR (helically formed and smooth conduits)

Product features

  • Dust protection
  • Moisture-protection
  • Ensures high tensile strength and mechanical protection

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • PG connection thread
  • Hexagonal collar with integrated conduit connection

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Black (RAL 9005), UV-resistant
  • Grey, RAL 7001

Material

  • PA66
    Halogen-free

Protection rating

  • IP 65 with helically formed conduits
    IP 67 + IP 68 (2bar) with smooth conduits

Temperature range

  • -40°C to +120°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
