View larger
Images are for illustrative purposes only. Please refer to data sheet for details

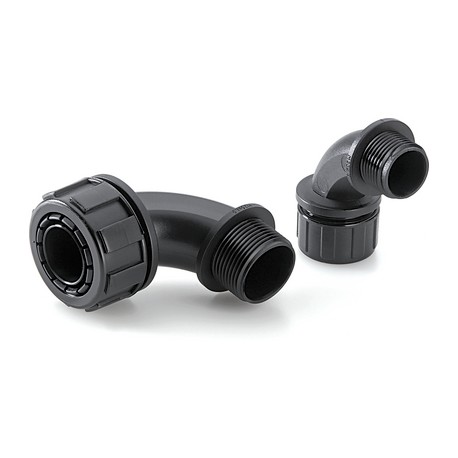

55502482 SILVYN MPC 90° M 20x1,5/2 BK LAPP SILVYN MPC 90° M 20x1,5/2 BK
55502482
55502482
SILVYN MPC 90° M 20x1,5/2 BK
LAPP
10 Pcs.
SILVYN MPC 90° M 20x1,5/2 BK
SILVYN® MPC 90° M
Automation > Screw connection for protective plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SILVYN® MPC 90° M - conduit fitting for use with SILVYN® EL/ELU/ELO/ELT
Benefits
- All-purpose
- Fast and easy assembly
- 90° elbow allows easy installation
Application range
- In combination with protective conduit:
- SILVYN® EL/ELU/ELO/ELT/ELR (helically formed and smooth conduits)
Product features
- Dust protection
- Moisture-protection
- Ensures high tensile strength and mechanical protection
Norm references / Approvals
- UL FILENUMBER E308201
Product Make-up
- Metric connection thread
- 90° elbow with integrated conduit connection
Note
- PG threaded versions are to be found in the online catalogue
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001178
- ETIM 5.0 Class-Description: Screw connection for protective plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001178
- ETIM 6.0 Class-Description: Screw connection for protective plastic hose
Certifications
- IEC EN 61386-23
Colour delivered
- Black (RAL 9005), UV-resistant
- Grey, RAL 7001
Material
- PA66
Halogen-free
Protection rating
- IP 65 with helically formed conduits
IP 67 + IP 68 (2bar) with smooth conduits
Temperature range
- -40°C to +120°C
