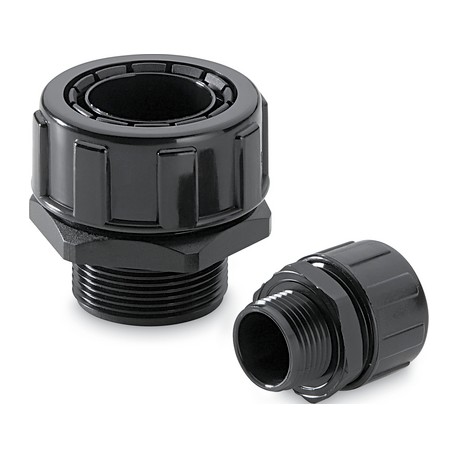

LAPP 55502466 55502466 SILVYN MPC M40 BK LAPP SILVYN MPC M40 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

55502466 SILVYN MPC M40 BK LAPP SILVYN MPC M40 BK

55502466

55502466

SILVYN MPC M40 BK

LAPP

2 Pcs.

SILVYN MPC M40 BK SILVYN® MPC-M

Automation > Screw connection for protective plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 55502466 screw connection for protective plastic hose terminates high-capacity conduit networks in heavy industrial machinery. These robust fittings prevent conduit pull-out and protect internal electrical conductors from harsh operating conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose
  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

More info

▲

SILVYN® MPC-M - conduit fitting for use with SILVYN® EL/ELU/ELO/ELT

Benefits

  • All-purpose
  • Fast and easy assembly

Application range

  • In combination with protective conduit:
  • SILVYN® EL/ELU/ELO/ELT/ELR (helically formed and smooth conduits)

Product features

  • Dust protection
  • Moisture-protection
  • Ensures high tensile strength and mechanical protection

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • Hexagonal collar with integrated conduit connection

Note

  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001178
  • ETIM 5.0 Class-Description: Screw connection for protective plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001178
  • ETIM 6.0 Class-Description: Screw connection for protective plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Black (RAL 9005), UV-resistant
  • Grey, RAL 7001

Material

  • PA66
    Halogen-free

Protection rating

  • IP 65 with helically formed conduits
    IP 67 + IP 68 (2bar) with smooth conduits

Temperature range

  • -40°C to +120°C
