View larger
Images are for illustrative purposes only. Please refer to data sheet for details

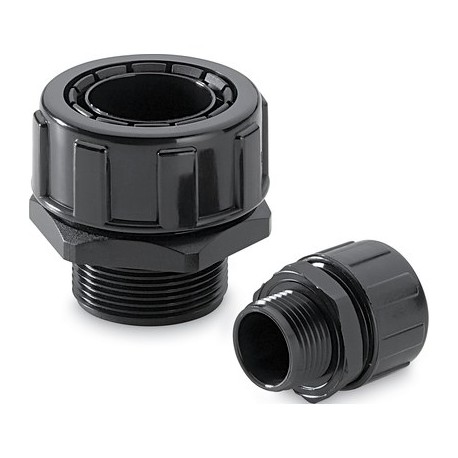

55502455 SILVYN MPC PG36 GY LAPP SILVYN MPC PG36 GY
55502455
55502455
SILVYN MPC PG36 GY
LAPP
2 Pcs.
SILVYN MPC PG36 GY
SILVYN® MPC
Automation > Screw connection for protective plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SILVYN® MPC - conduit fitting for use with SILVYN® EL/ELU/ELO/ELT
Benefits
- All-purpose
- Fast and easy assembly
Application range
- In combination with protective conduit:
- SILVYN® EL/ELU/ELO/ELT/ELR (helically formed and smooth conduits)
Product features
- Dust protection
- Moisture-protection
- Ensures high tensile strength and mechanical protection
Norm references / Approvals
- UL FILENUMBER E308201
Product Make-up
- PG connection thread
- Hexagonal collar with integrated conduit connection
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001178
- ETIM 5.0 Class-Description: Screw connection for protective plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001178
- ETIM 6.0 Class-Description: Screw connection for protective plastic hose
Certifications
- IEC EN 61386-23
Colour delivered
- Black (RAL 9005), UV-resistant
- Grey, RAL 7001
Material
- PA66
Halogen-free
Protection rating
- IP 65 with helically formed conduits
IP 67 + IP 68 (2bar) with smooth conduits
Temperature range
- -40°C to +120°C
