View larger
Images are for illustrative purposes only. Please refer to data sheet for details

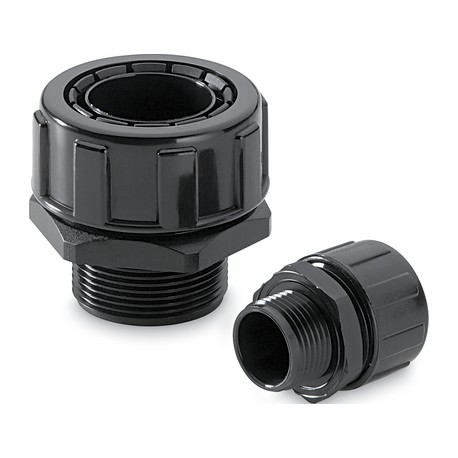

55502442 SILVYN MPC M16.2 GY LAPP SILVYN MPC M16.2 GY
55502442
55502442
SILVYN MPC M16.2 GY
LAPP
10 Pcs.
SILVYN MPC M16.2 GY
SILVYN® MPC-M
Automation > Screw connection for protective plastic hose
SILVYN cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SILVYN® MPC-M - conduit fitting for use with SILVYN® EL/ELU/ELO/ELT
Benefits
- All-purpose
- Fast and easy assembly
Application range
- In combination with protective conduit:
- SILVYN® EL/ELU/ELO/ELT/ELR (helically formed and smooth conduits)
Product features
- Dust protection
- Moisture-protection
- Ensures high tensile strength and mechanical protection
Norm references / Approvals
- UL FILENUMBER E308201
Product Make-up
- Metric connection thread
- Hexagonal collar with integrated conduit connection
Note
- PG threaded versions are to be found in the online catalogue
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001178
- ETIM 5.0 Class-Description: Screw connection for protective plastic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001178
- ETIM 6.0 Class-Description: Screw connection for protective plastic hose
Certifications
- IEC EN 61386-23
Colour delivered
- Black (RAL 9005), UV-resistant
- Grey, RAL 7001
Material
- PA66
Halogen-free
Protection rating
- IP 65 with helically formed conduits
IP 67 + IP 68 (2bar) with smooth conduits
Temperature range
- -40°C to +120°C
